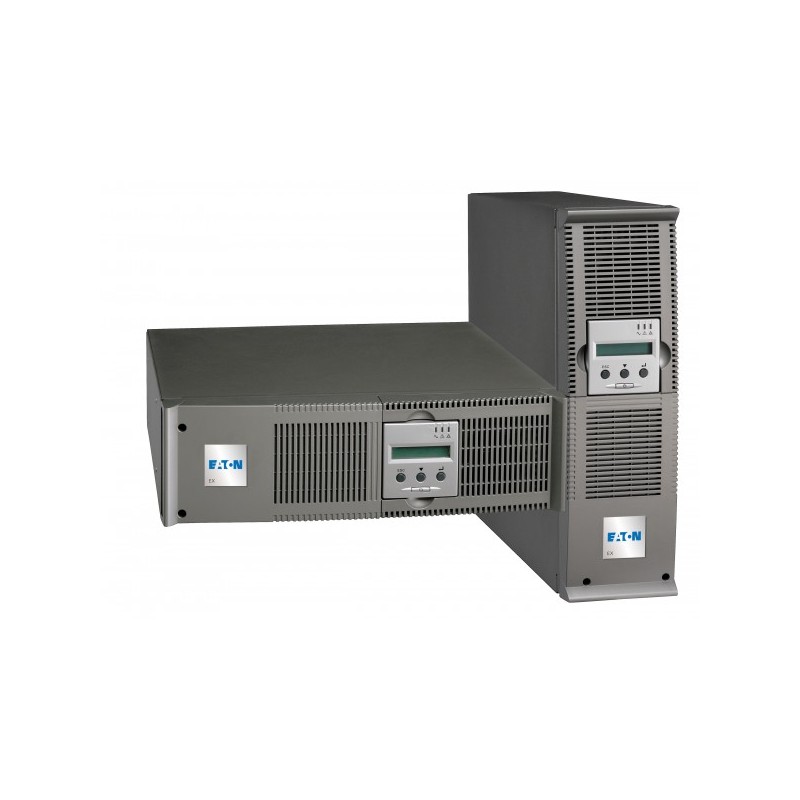

Eaton EX 2200VA 3U Rack/Tower Hotswap Hardwired

Maximum availability

Configuration
Double conversion on-line UPS with automatic by-pass and power factor correction.

Powershare
The Pulsar output sockets are individually controlled to provide load-shedding to maximise the backup time and provide remote reboot and sequential start-up as standard.

Continuous power supply
Hot swappable batteries. The HotSwap MBP (Maintenance By-Pass) module allows the batteries to be replaced without interrupting the power supply.

Long backup times
1 to 4 EXB battery units can be added to the Pulsar M. The Pulsar 3000XL has a built-in high speed charger for additional long backup times.

Redundancy
The ModularEasy kit makes it easy to parallel 2 standard Pulsar M UPSs (N + 1 redundancy).

Minimum total cost of ownership

ModularEasy kit
A simple, low cost solution for uprating by adding a second standard UPS.

Easy operation
Multilingual display. Access to a wide range of measurements and set-up menus.

Remote supervision
A wide range of options using the Solution-Pac supplied: SNMP and HTML, ModBus/JBus and relay outputs.

Totally adaptable

Pulsar has unmatched adaptability.

Format
Pulsar is available in tower format or RT2U convertible rack/tower version (for shallow rack mounting).

Connections
With FlexPDU and HotSwap MBP, the RT2U models can be connected by sockets or terminal blocks. They can be installed as required behind, on the side or on top of the unit.

Compatible with high power factor loads
Pulsar is rated for 0.9 total power factor.

Interfaces
USB + serial + remote start/stop + slot for optional communications card.

CertificationCE, TüV GS, CB report, UL 1778 cUL CSA 22.2
Colour of productGrey
CompatibilityServers, PC's, data storage, network & medical equipment
Dimensions (WxDxH)440 x 490 x 131 mm
Form factorRT3U (tower / rack 3U)
I/O ports1 x USB, 1 x RS232, 1 x mini terminal block.
Input connection typeterminal block
Noise level45 dB
Nominal input voltage100/120/160/184 - 284 V
Nominal output voltage230 V
Operating temperature range (T-T)0 - 40 °C
Output connections8 IEC C13(10A) + 1 IEC C19(16A)
Output power1980 W
Output power capacity (VA)2200 VA
Output voltage note200/208/220/240
Power supply input frequency40 - 70 Hz
SafetyIEC/EN 62 040-3, IEC/EN 62040-1-1, IEC/EN 60950-1 (RD), IEC/EN 62 040-2 C1 Class
Serial ports quantity1
Source data-sheetIcecat.biz
Typical backup time at half load17 min
Weight30000 g
