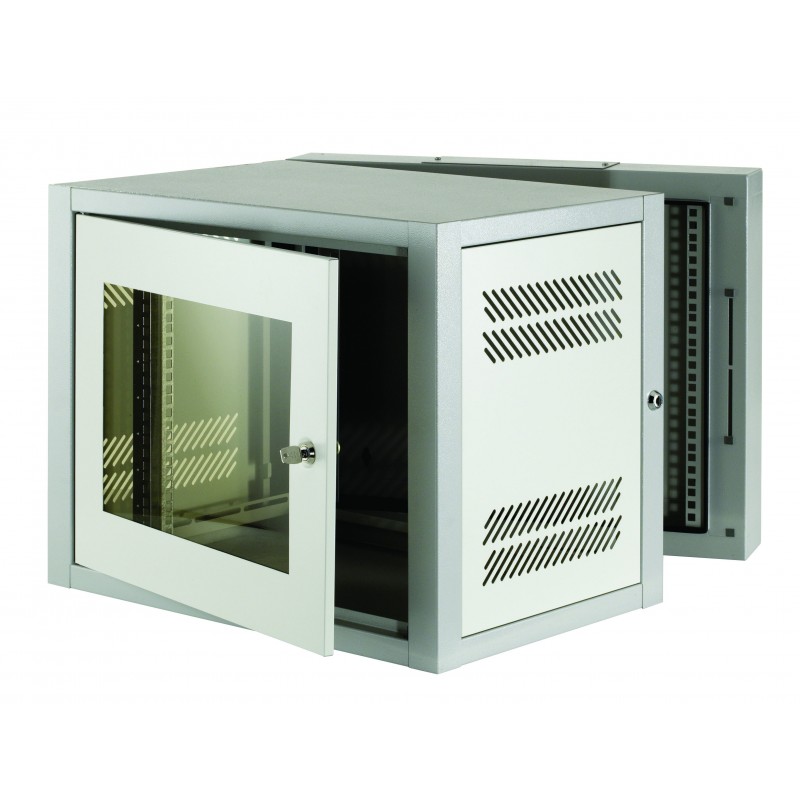

18u 500mm Deep 2 Part Wall Mounted Data Cabinet

The compact design of the Rax 19” Wall Mounting Cabinets make them ideal for smaller networks and workgroups.

The cabinets are available in various sizes and are supplied fully assembled. Each cabinet comprises a welded steel frame and adjustable front and rear 19” mounting profiles. The 2-part cabinet has an additional pair of fixed mounting profiles in the rear section

A gland plate is situated in the top and bottom of the cabinet, with the 2-part cabinet having plates in both the fixed and hinged sections.

The cabinets feature ventilation slots top and bottom; and have a lockable glass front door, and removable sides.

Features:

  • Manufactured in the UK
  • Supplied fully assembled
  • Ventilated top
  • Adjustable mounting posts
  • Lockable and removable side and rear doors
Cable EntryTop & Bottom
ColoursGrey
ConstructionWelded
Depth500mm
Front Door TypePerspex Lockable/Removable
Height900mm
Internal Working Depth420mm
Mounting Profiles19" Adjustable Front & Rear
Side PanelsLockable/Removable
U Height18u
Width600mm

You might also like

  • 24 Port Shielded Cat6 RJ45 Patch Panel
    24 Port Shielded Cat6 RJ45 Patch Panel
  • UK Socket / UK Plug Rack PDU
    UK Socket / UK Plug Rack PDU
  • Lounge Plate (TV, FM/DAB, SAT, Uplink & Telephone Socket)
    Lounge Plate (TV, FM/DAB, SAT, Uplink &...
  • 24 Port Cat6 UTP CCS Elite Patch Panel
    24 Port Cat6 UTP CCS Elite Patch Panel
  • 19" Cabinet Blanking Panels
    19" Cabinet Blanking Panels
  • 1u Brush Strip Panel
    1u Brush Strip Panel
  • 1u 19" Rackmount Cabinet Fan Units
    1u 19" Rackmount Cabinet Fan Units
  • 1u Horizontal & Vertical 5 Ring Cable Tidy Panel
    1u Horizontal & Vertical 5 Ring Cable Tidy...
  • 24 Port Cat6 CCS 2020 Right Angled UTP Patch Panel
    24 Port Cat6 CCS 2020 Right Angled UTP...

Similar products

  • 12u 500mm Deep 2 Part Wall Mounted Data Cabinet
    12u 500mm Deep 2 Part Wall Mounted Data...
  • 15u 500mm Deep 2 Part Wall Mounted Data Cabinet
    15u 500mm Deep 2 Part Wall Mounted Data...
  • 21u 500mm Deep 2 Part Wall Mounted Data Cabinet
    21u 500mm Deep 2 Part Wall Mounted Data...

18u 500mm Deep 2 Part Wall Mounted Data Cabinet

2 Section Wall Mounted Data Cabinet

009-000-007-18P

10 day lead time

£522.90
£435.75 Ex VAT.
