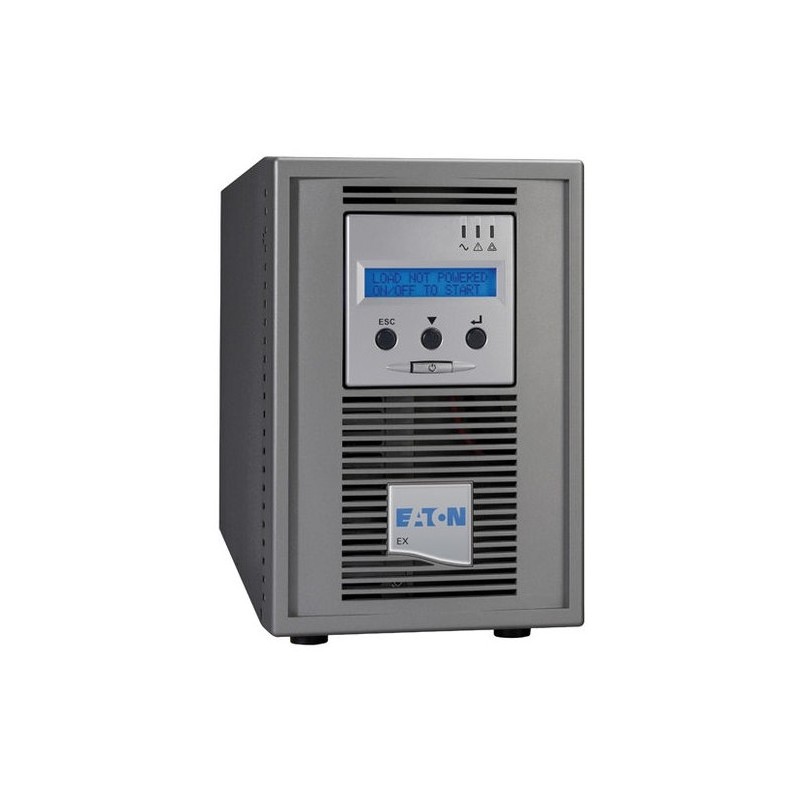

Eaton EX 700VA Tower

The Eaton EX UPS delivers high-performance power protection for mid-range servers, storage devices, networking gear, telephony equipment, medical devices and other sensitive electronic equipment requiring continuous, clean power. Complementing this UPS’s superior level of protection is a low total cost of ownership and a broad range of high-availability features that combine to make the EX among the best in its class.

- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options.
- Available in Tower or Rack/Tower convertible versions (including short-depth versions).
- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption.
- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up.
- Multilingual LCD display for easy operation, access to measurements and customized set-up.
- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus).

Battery technologySealed Lead Acid (VRLA)
CertificationCE, TüV GS, CB report, UL 1778 cUL CSA 22.2
Colour of productGrey
Communication softwareIntelligent Power Manager
Dimensions (W x D x H)152.4 x 400 x 241.8 mm (6 x 15.75 x 9.52 ")
Dimensions (WxDxH)153 x 440 x 242 mm
Form factorMini Tower
Input connection typeC14
Noise level45 dB
Nominal input voltage230 V
Operating temperature range (T-T)0 - 40 °C
Output connections(6) C13
Output power630 W
Output power capacity (VA)700 VA
Power supply input frequency50/60 Hz
SafetyIEC/EN 62 040-3 (VFI-SS-113), IEC/EN 62 040-1-1, IEC/EN 60 950-1 (RD), IEC/EN 62 040-2 C1 Class
Serial ports quantity1
Source data-sheetIcecat.biz
Typical backup time at full load9 min
Typical backup time at half load31 min
Weight12500 g

Similar products

  • Eaton EX 1500VA 2u Rack/Tower UPS
    Eaton EX 1500VA 2u Rack/Tower UPS
  • Eaton EX 2200VA 2u Rack/Tower UPS
    Eaton EX 2200VA 2u Rack/Tower UPS
  • Eaton EX 2200VA 3u Rack/Tower UPS
    Eaton EX 2200VA 3u Rack/Tower UPS
  • Eaton EX 3000VA 3u XL Rack/Tower UPS
    Eaton EX 3000VA 3u XL Rack/Tower UPS
  • Eaton EX 2200VA 3U Rack/Tower Hotswap IEC
    Eaton EX 2200VA 3U Rack/Tower Hotswap IEC

Eaton EX 700VA Tower

EX 700 - 700VA / 630W Mini Tower, IEC C14 Input Connection, (6) C13 receptacles

68180

Stock Due 08-12-2024

£638.63
£532.19 Ex VAT.
