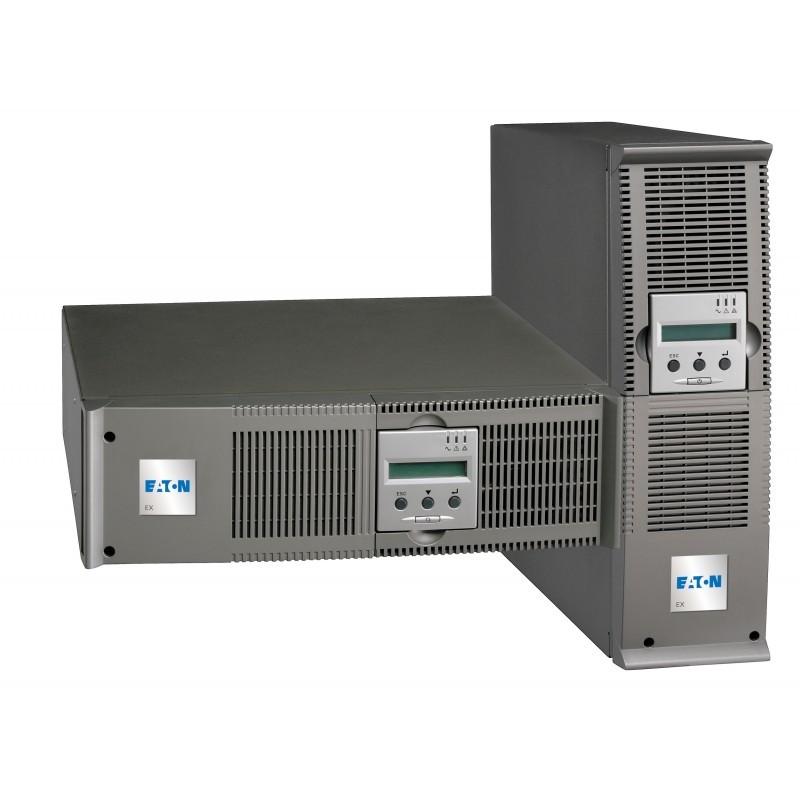

The Eaton EX UPS, part of the Pulsar Series, offers high availability, flexibility and minimum total cost of ownership for Servers, data storage, network equipment, telephony - VOIP, medical equipment and industrial processes. Delivering on-line double conversion protection in Tower or versatile Rack/Tower format.
- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options
- Available in Tower or Rack/Tower convertible versions (including short-depth versions)
- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption
- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up
- Multilingual LCD display for easy operation, access to measurements and customized set-up
- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus)
AC outlet types |
C13 coupler, C19 coupler |
AC outlets quantity |
9 |
Colour of product |
Grey |
Depth |
49 cm |
Form factor |
Rackmount/Tower |
Height |
44 cm |
Input operation voltage (max) |
284V |
Input operation voltage (min) |
100V |
LED indicators |
Yes |
Noise level |
45 dB |
Operating temperature (T-T) |
0 - 40 °C |
Output operation voltage (max) |
240V |
Output operation voltage (min) |
200V |
Output power |
2400W |
Output power capacity (VA) |
3000 VA |
Power plug |
C20 coupler |
Power supply input frequency |
40/70 Hz |
Rack mounting |
3U |
RS-232 ports |
1 |
Safety |
IEC/EN 62 040-1, IEC/EN 62 040-2, IEC/EN 62 040-3 (VFI-SS-113), IEC/EN 60 950-1 (RD) |
Weight |
30 kg |
Width |
13.1 cm |
Specific References
- EAN13
- 3553340684043
