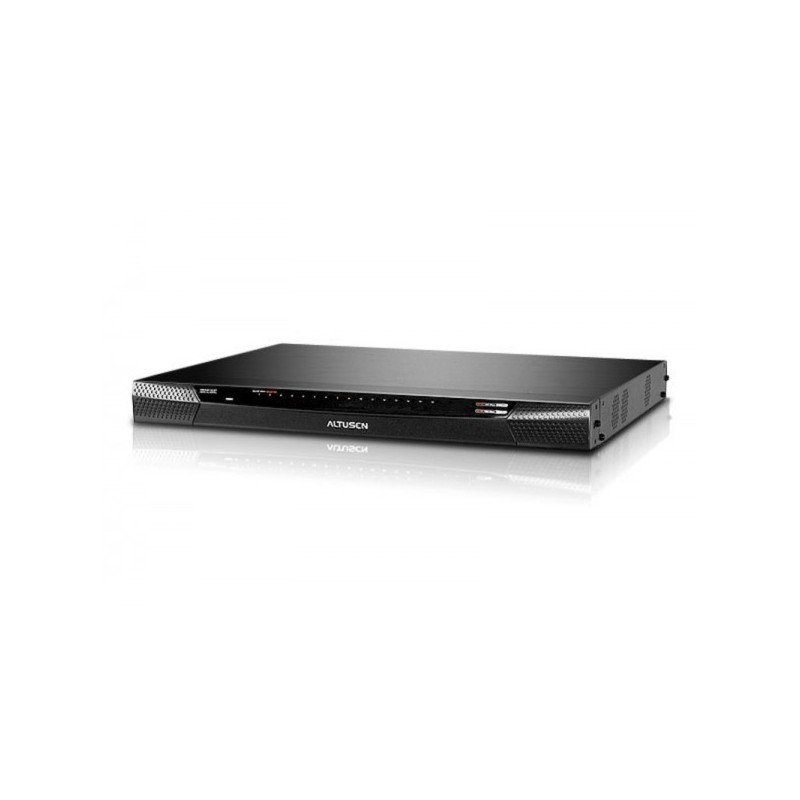

Aten KN2116A 16-Port KVM over IP Switch
  • Aten KN2116A 16-Port KVM over IP Switch
  • Aten KN2116A 16-Port KVM over IP Switch
  • Aten KN2116A 16-Port KVM over IP Switch
  • Aten KN2116A 16-Port KVM over IP Switch
  • Aten KN2116A 16-Port KVM over IP Switch


- High port density - RJ-45 connectors and Cat 5e/6 cable for up to 16 ports in a 1U housing

- Two separate buses for remote KVM over IP access

- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation

- Blade server support

- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity

- Local console provides PS/2 and USB keyboard and mouse support

- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices

- High video resolution - up to 1600 x 1200 @ 60Hz - 32 bit color depth for the local console; up to 1600 x 1200 @ 60Hz with 24 bit color depth for remote sessions, at up to 50 m

- Monitor and control up to 16 computers on a single level, or control up to 256 computers in a two-level cascade*

* Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A. Some KVM Over the NET™ features may not be supported, depending on the functionality of the cascaded KVM switch.


- Up to 64 user accounts - up to 32 users simultaneously share the control

- End session feature - administrators can terminate running sessions

- Event logging and Windows-based Log Server support

- Critical system event notification via SMTP email; SNMP trap and Syslog support

- Customizable events notification

- Firmware upgradeable

- Out-of-Band Access-Modem dial-in/dial out/dial back support

- Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches

- Port Share Mode allows multiple users to gain access to a server simultaneously

- Integration with ALTUSEN CC2000 Management software

- Power Association enables the switch’s KVM ports to be associated with an ATEN/ALTUSEN’S PDUs power outlets for remote power management of the servers from the switch’s interface

- Manage browser access methods(Browser, http, https)

- IPv6 capable

Ease-to-Use Interface

- Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity

- Multiplatform client support (Windows, Mac OS X, Linux, Sun)

- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape

- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required

- User can launch multiple Virtual Remote Desktop to control multiple connected servers from the same login session

- Magic Panel

- Full-screen or sizable and scalable Virtual Remote Desktop

- Panel Array Mode available to both local console operators and remote access users

- Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers

- Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization

Advanced Security

- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory

- 128-bit SSL encryption to protect password when users log in

- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption

- Support for IP/MAC Filter

- Configurable user and group permissions for server access and control

- Automated CSR creation utility and third party CA certificate authentication

Virtual Remote Desktop

- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations

- Full screen video display or scalable video display

- Message Board for communication among remote usersc

- Mouse DynaSync -automatically synchronizes the local and remote mouse movements

- Exit Macros support

- On-screen keyboard with multilanguage support

- BIOS-level access

Package Contents

- 1x KN2116A KVM Over the NET™ KVM Switch

- 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)

- 1x 1ADP-0009-001G Power Cord

- 1x Rack Mount Kit

- 1x Foot Pad Set (4 pcs.)

- 1x User Instructions
Colour depth32 bit
Colour of productBlack
Compatible operating systemsWindows, Mac OS X, Linux, Sun
Connectivity technologyWired
Depth433.6 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports2
Ethernet LAN (RJ-45) ports quantity2
Ethernet LAN connectionYes
Height44 mm
LED indicatorsYes
Management protocolsSMTP
Maximum resolution1600 x 1200 pixels
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Number of computers controlled16
Number of simultaneous users32 user(s)
Operating relative humidity (H-H)0 - 80 %
Operating relative humidity range0 - 80 %
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Ports quantity16
Power consumption (typical)33.8 W
Quick installation guideYes
Rack mountingYes
RoHS complianceYes
Scan interval255 s
Security algorithms256-bit AES,3DES,802.1x RADIUS,DES,SSL/TLS
Security algorithms supported256-bit AES, SSL/TLS, 802.1x RADIUS, DES, 3DES
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
USB 2.0 ports quantity3
VGA (D-Sub) ports quantity1
Weight5460 g
Width413.5 mm
