Aten KN2116V
  • Aten KN2116V
  • Aten KN2116V
  • Aten KN2116V
The new generation of KVM over the NET™ switches allows local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser. In addition, they offer out-of-band access – including external modem support – for BIOS-level troubleshooting when the network is down. To help you manage and control your entire datacenter environment, we now support blade servers and chassis. Also, there are some new powerful features such as Power Association, which enables the switch’s KVM ports to be associated with power outlets on an ATEN/ALTUSEN PDUs – therefore allowing power management of the server attached to the port from the switch’s interface. The KVM Over the NET™ switches’ powerful capabilities further include: Message Board, Panel Array Mode, Mouse DynaSync, and Adapter ID. To help you manage and control your entire datacenter environment, we now support blade servers and chassis. Also, there are some new powerful features such as Power Association, which enables the switch´s KVM ports to be associated with power outlets on an ATEN/ALTUSEN PDUs – therefore allowing power management of the server attached to the port from the switch´s interface. If a server has dual power supply, secondary power association lets you associate a second outlet port and synchronize the operation for both power supplies. The KVM Over the NET™ switches´ powerful capabilities further include: Message Board , Panel Array Mode™, Mouse DynaSync™, Adapter ID, and Virtual Media.



The Virtual Media function lets you map USB storage media (including DVD/CD drives), and image files to a remote server – allowing administrators to conduct file transfers, install applications and OS patches, and perform diagnostics remotely with ease. With their dual on-board NICs and dual power supplies, these switches are built for 24/7 reliability to ensure the highest rate of availability for your server room and data center services. The switch´s design also features Green IT solutions that include four temperature sensors to regulate up to six fans – making sure they are always running at optimum speed – throttling down and speeding up depending on the room temperature, reducing data center IT operation costs through a more efficient way of using energy. With ALTUSEN KVM over the NET™ switches, IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair) – and ensuring the highest availability of data center services possible.
AC input frequency50/60 Hz
AC input voltage100-240 V
Audio connectionsYes
Built-in displayNo
Cabling technology10/100/1000Base-T(X)
Colour of productBlack
CompatibilityPC, Mac, Sun
DC-in jackYes
Depth433.6 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports20
External power adapterYes
Headphone outputs1
Height44 mm
Keyboard port typeUSB, PS/2
LED indicatorsLink,Power
MaterialMetal
Maximum resolution1600 x 1200 pixels
Microphone in1
Mouse port typeUSB, PS/2
Number of computers controlled16
Operating relative humidity (H-H)0 - 80 %
Operating temperature (T-T)0 - 50 °C
Power consumption (typical)38.7 W
PS/2 ports quantity2
Rack mountingYes
Scan interval255 s
Storage relative humidity (H-H)0 - 80 %
Storage temperature (T-T)-20 - 60 °C
USB 2.0 ports quantity3
USB poweredNo
VGA (D-Sub) ports quantity1
Video port typeVGA
Weight5910 g
Width413.5 mm

Similar products

  • Aten KN2116A
    Aten KN2116A
  • Aten KN1116V
    Aten KN1116V
  • Aten KN1108V
    Aten KN1108V
  • Aten KN4116
    Aten KN4116

Aten KN2116V

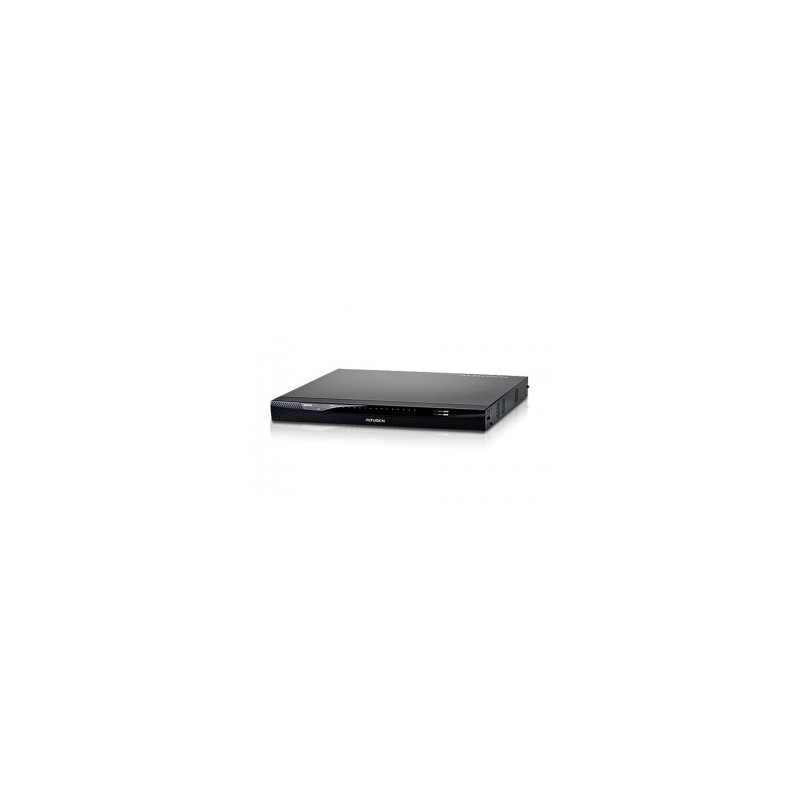

16-Port KVM over IP Switch 1 local / 2 remote user access

KN2116V

Out of Stock

£2,772.00
£2,310.00 Ex VAT.
