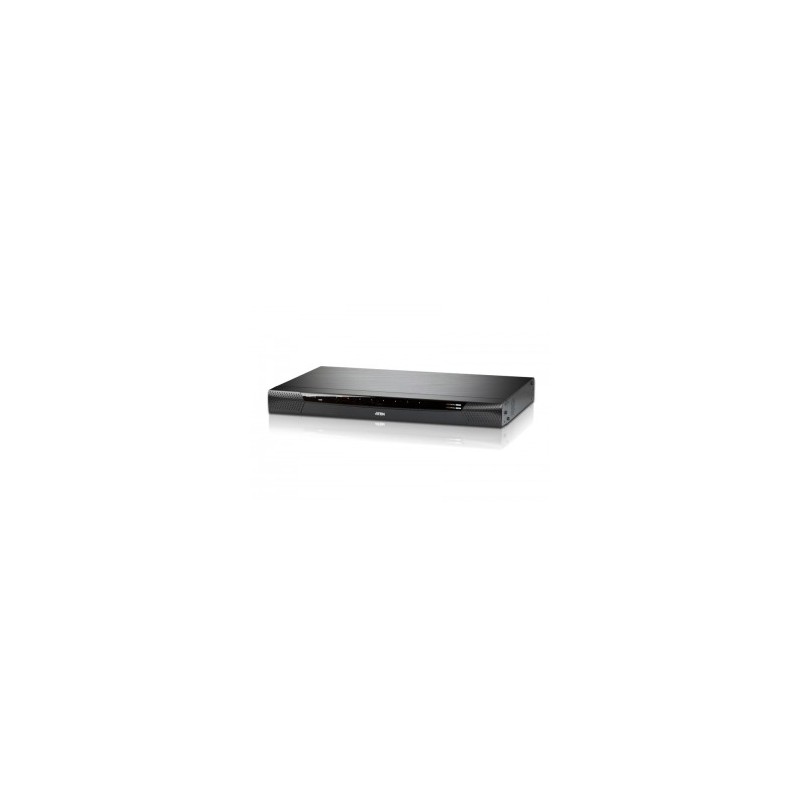

Aten KN1108V

KVM over IP Switch

More details

KN1108v

Out of Stock

Aten´s new generation of KVM over IP switches - KN series allows local and remote operators the ability to monitor and access ... Read More

Browse our range of high quality PDUs

New product

£1,468.25

£1,223.54 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

Aten´s new generation of KVM over IP switches - KN series allows local and remote operators the ability to monitor and access their entire data center over the network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches user interface.

KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception.


The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers – allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.

Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode™, Mouse DynaSync™, Adapter ID and Secure Serial Server Access. The secure access to serial-controlled devices includes network equipment, UNIIX servers, Linux servers, Sun servers and many more serial consoles. It provides installation without needing expensive serial dongles.

With dual on-board NICs and dual power supplies, the KVM over IP switches are built for reliability, to ensure 24/7 availability of remote access to all server room computers.

With Aten KVM over IP switches IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair) – ensuring the highest availability of data center services possible.

AC input frequency50/60 Hz
AC input voltage100-240V
Audio connectionsYes
Built-in displayNo
Cables includedAC
Colour of productBlack
DC-in jackYes
Depth28.78 cm
Ethernet LAN (RJ-45) ports14
Height4.4 cm
Keyboard port typeUSB
LED indicatorsLink, Power
ManualYes
MaterialMetal
Maximum resolution1920 x 1200 pixels
Mouse port typeUSB
Number of computers controlled8
Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 50 °C
Power consumption (typical)17W
RoHS complianceYes
Scan interval255s
Storage temperature (T-T)-20 - 60 °C
USB 2.0 ports quantity3
VGA (D-Sub) ports quantity1
Video port typeVGA
Weight3.57 kg
Width43.36 cm
EAN0672792003608
ManufacturerAten
