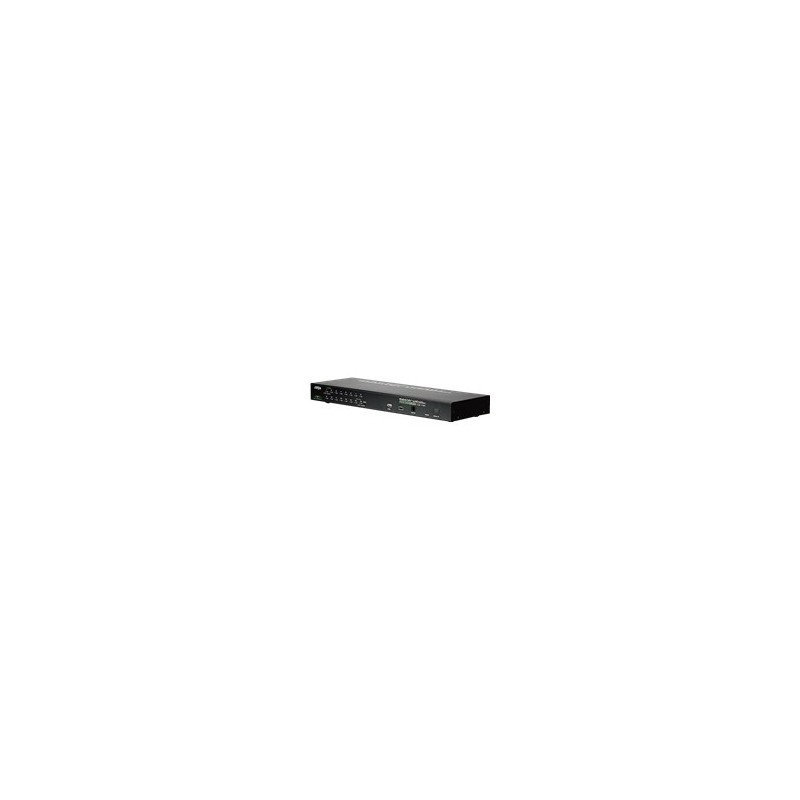

Aten CS1716I

16-Port PS/2-USB KVM over IP Switch With 1 Local/Remote User Access

More details


Out of Stock

Features Management - Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen ... Read More

Need a custom made cabinet? we have it covered

New product


£0.00 tax excl.

  • More info

  • Details



- Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus

- Up to 32 concurrent logins

- Multilanguage web UI support featuring a tree-structured local and remote OSD

- Adjustable video quality for flexible adaptation to diverse network environments

- Auto Scan feature for monitoring user-selected computers

- Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).

- Firmware upgradable

- Backup and restore configuration and user account settings

- Event logging

- Enable/disable browser access

- IPv6 capable

Ease-to-Use Interface

- Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilanguage interface to minimize user training time and increase productivity

- Multiplatform client support (windows, Mac OS X, Linux, Sun)

- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)

- Port names automatically reconfigured when station sequence is changed

- Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view

- Windows client and Java client software support; Java client works with all operating systems

Advanced Security

- Secure keyboard/mouse/video transmission via RC4 128 bit encryption

- 128 bit SSL browser access

- Two level password security - up to 64 user accounts with separate profiles for each

- External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory

- Support for IP/MAC Filter

- Local and remote access logged and authenticated

Virtual Remote Desktop

- Resizable remote desktop window

- Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions

- Mouse DynaSync™

- On-screen keyboard with multilanguage support

- BIOS-level access


- 16-port remote access KVM switch - monitor and control up to 16 computers from a single KVM console

- Daisy chain up to 15 additional units - control up to 256 computers from a single console*

- Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position

- Hot pluggable - add or remove computers without having to power down the switch

- Multiplatform support - Windows, Linux, Mac, and Sun

- Front panel USB hub allows connected computers to access USB peripherals

- Dual Interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection

- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere

- Supports USB keyboards for PC, Mac and Sun

- Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions

- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

- Rack mountable in a 19" (1U) system rack

Package Content

1x CS1716i KVM Switch

1x 2L-5202P PS/2 KVM Cable

1x 2L-5202U USB KVM Cable

1x LIN5-27X6-U21G Console Cable

1x Firmware Upgrade Cable

1x Mounting Kit

1x Foot Pad Set (4 pcs)

1x 0AD6-1605-24EG Power Adapter

1x Software CD

1x User Instructions
AC adapter includedYes
Browser supportedIE, Mozilla, Firefox, Safari, Opera, Netscape
Built-in displayNo
Cables includedKVM
Colour depth24 bit
Colour of productBlack
Compatible operating systemsWindows, Mac OS X, Linux, Sun
Connectivity technologyWired
DC-in jackYes
Depth433 mm
Dimensions (WxDxH)160 x 433 x 44 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Height44 mm
I/O ports1 x SPHD-18 M 16 x SPHD-17 F 1 x DB-25 M 1 x DC In 1 x RJ-45 F 1 x RJ-11 1 x USB1.1 A
LED indicatorsYes
Maximum resolution2048 x 1536 pixels
Number of computers controlled16
Number of users32 user(s)
Operating relative humidity (H-H)0 - 80 %
Operating temperature (T-T)0 - 50 °C
Plug and PlayYes
Ports quantity16
Power consumption (typical)11 W
Power requirements5.3VDC
Rack mountingYes
RoHS complianceYes
Scan interval255 s
Security algorithms802.1x RADIUS,SSL/TLS
Storage temperature (T-T)-20 - 60 °C
USB poweredNo
Weight3000 g
Width160 mm
