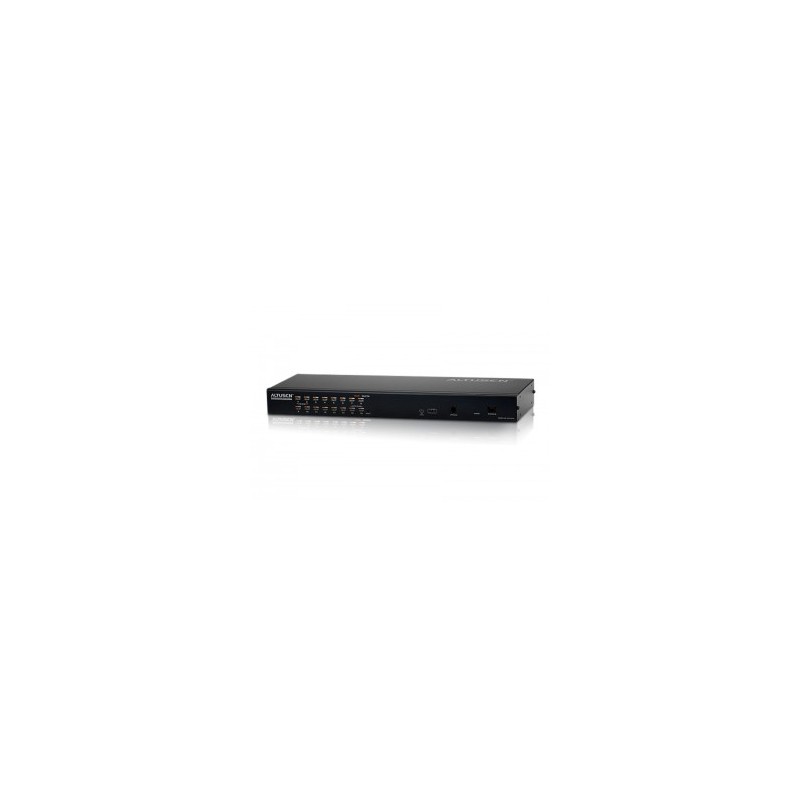

Aten KH1516Ai

Cat 5 High-Density KVM over IP Switch

More details


Out of Stock

Features Hardware - High port density – RJ-45 connectors for up to 16 ports in a 1U housing - A dedicated USB port ... Read More

Need a custom made cabinet? we have it covered

New product


£0.00 tax excl.

  • More info

  • Details



- High port density – RJ-45 connectors for up to 16 ports in a 1U housing

- A dedicated USB port directly connects to a laptop for easy Console operation

- One bus for remote KVM over IP access

- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity

- Local console provides PS/2 and USB keyboard and mouse support

- Multiplatform support - Windows, Mac, Sun and Linux

- Superior Video Quality - up to 1600 x 1200 @ 60Hz at up to 40 meters and 1280 x 1024 @ 75Hz at up to 50 meters*

- Daisy-chain up to 15 additional units – control up to 256 computers from a single console

* With KVM Adapter Cable KA7000 series.


- Up to 64 user accounts – up to 32 users simultaneously share the control

- End session feature – administrators can terminate running sessions

- Event logging and Windows-based Log Server support

- Local Log Event

- Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch

- Port Share Mode allows multiple users to gain access to a server simultaneously

- Integration with ALTUSEN CC2000 Management software

- Power Over the NET™ integration for remote power control

- Firmware upgradeable

- IPv6 capable

Ease-to-Use Interface

- Local Console, Browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity

- Multiplatform client support (Windows, Mac OS X, Linux, Sun)

- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)

- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed

- Panel Array Mode™

- Keyboard broadcast – keyboard input can be duplicated on all the attached servers

Advanced Security

- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory

- 128-bit SSL encryption to protect password when users log in

- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video, data encryption

- IP/MAC Filter for enhanced security protection

- Configurable user and group permissions for server access and control

Virtual Remote Desktop

- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations

- Full screen or scalable video display

- Message Board for communication among remote users

- Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements

- On-screen keyboard with multilanguage support

- Exit Macros support

- BIOS-level access

Package Contents

- 1x KH1516Ai Cat 5 High-Density KVM Over the NET™ Switch

- 1x Firmware Upgrade Cable

- 1x Laptop USB Console Cable

- 1x 0AD8-0C05-34EG Power Cord

- 1x Rack Mount Kit

- 1x Foot Pad Set (4 pcs.)

- 1x User Instructions
Cable length50.29 m
Colour of productBlack
Connectivity technologyWired
Depth437 mm
Display resolution at frequency1600 x 1200 @ 60Hz 1280 x 1024 @ 75Hz
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Height44 mm
LED indicatorsYes
Maximum resolution1600 x 1200 pixels
Minimum system requirementsPentium III 1 GHz 1024 x 768 VGA/SVGA/Multisync USB Type A 6-pin mini-DIN
Number of computers controlled16
Package weight4082.3 g
Ports quantity16
Power consumption (typical)12.5 W
Power requirements1A
PS/2 ports quantity2
Quick installation guideYes
Rack mountingYes
Scan interval255 s
Security algorithms256-bit AES,3DES,DES,SSL/TLS
USB 2.0 ports quantity3
Video port typeVGA
Weight2800 g
Width161 mm
