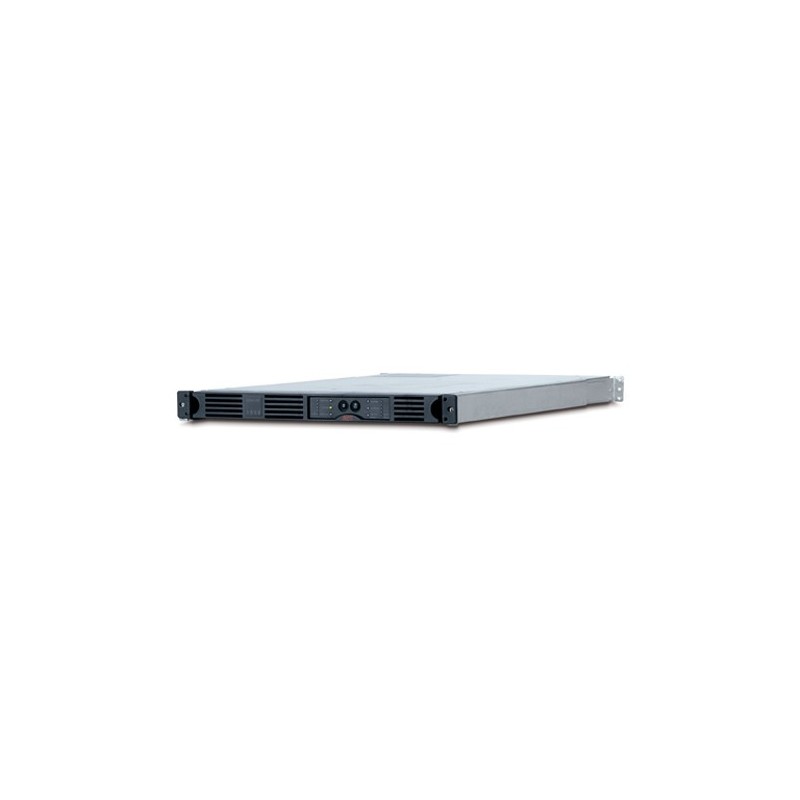

APC SUA1000RMI1U Smart-UPS 1000VA USB & Serial RM 1U 230V
  • APC SUA1000RMI1U Smart-UPS 1000VA USB & Serial RM 1U 230V
  • APC SUA1000RMI1U Smart-UPS 1000VA USB & Serial RM 1U 230V

Please Note, this product is not for consumer use in the European Union.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery.



Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.



Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Cold-start capable

Provides temporary battery power when the utility power is out.



Disconnected battery notification

Warns when a battery is not available to provide backup power.





Network manageable

Provides remote management of the UPS over the network.



Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.



LED status indicators

Quickly understand unit and power status with visual indicators.



Serial Connectivity

Provides management of the UPS via a serial port.



USB connectivity

Provides management of the UPS via a USB port (not available on all models).



Disconnected battery notification

Warns when a battery is not available to provide backup power.



InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure® Manager.





User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).



Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.



Predictive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.



Resettable circuit breakers

Enables a quick recovery from overload events.





Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.



Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.



Field-replaceable power distribution panel

Ensures compatibility with equipment that has different plug types.
AC outlet typesC13 coupler
AC outlets quantity4 AC outlet(s)
Battery capacity216 VAh
Battery recharge time2 h
Battery replacement alarmsLED
Battery technologySealed Lead Acid (VRLA)
Bundled software- PowerChute Business Edition v6.2.2 Agent f Linux - PowerChute Business Edition v6.2.2 f Netware 5.1/6.0 - PowerChute Business Edition v6.2.2 f XP / 2000 / NT(Sp6 or higher) - 5 Node - PowerChute Business Editon v6.0.2 f Solaris 8.0
Cables includedRS-232,USB cable
CertificationC-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, PEP, EOLI
Colour of productBlack
Depth660 mm
Dimensions (WxDxH)431.8 x 660.4 x 43.7 mm
Form factorRackmount
Height44 mm
Hot-swap batteryYes
I/O portsUSB
Input connection typeIEC-320 C14
Input operation voltage (max)302 V
Input operation voltage (min)151 V
InterfaceDB-9 RS-232, SmartSlot, USB
LED indicatorsYes
ManualYes
Noise level55 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output power640 W
Output power capacity (VA)1000 VA
Package dimensions (WxDxH)559 x 775 x 191 mm
Package height191 mm
Package weight25450 g
Package width559 mm
Power supply input frequency50/60 Hz
Quantity per pallet8 pc(s)
Rack capacity1U
Replacement battery cartridgeRBC34
RoHS complianceYes
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating480 J
Typical backup time at full load5.4 min
Typical backup time at half load14.5 min
USB portYes
WaveformSine
Weight21820 g
Width432 mm

Similar products

  • APC Smart-UPS SMT750I
    APC Smart-UPS SMT750I
  • APC Smart-UPS SUA750RMI1U
    APC Smart-UPS SUA750RMI1U
  • APC Smart-UPS SMT750RMI2U
    APC Smart-UPS SMT750RMI2U
  • APC Smart-UPS SMT1000I
    APC Smart-UPS SMT1000I

APC Smart-UPS SUA1000RMI1U

Smart-UPS, 640 Watts, 1000 VA,Input 230V, Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB, Rack Height 1 U

SUA1000RMI1U

Out of Stock

£1,101.86
£918.22 Ex VAT.
