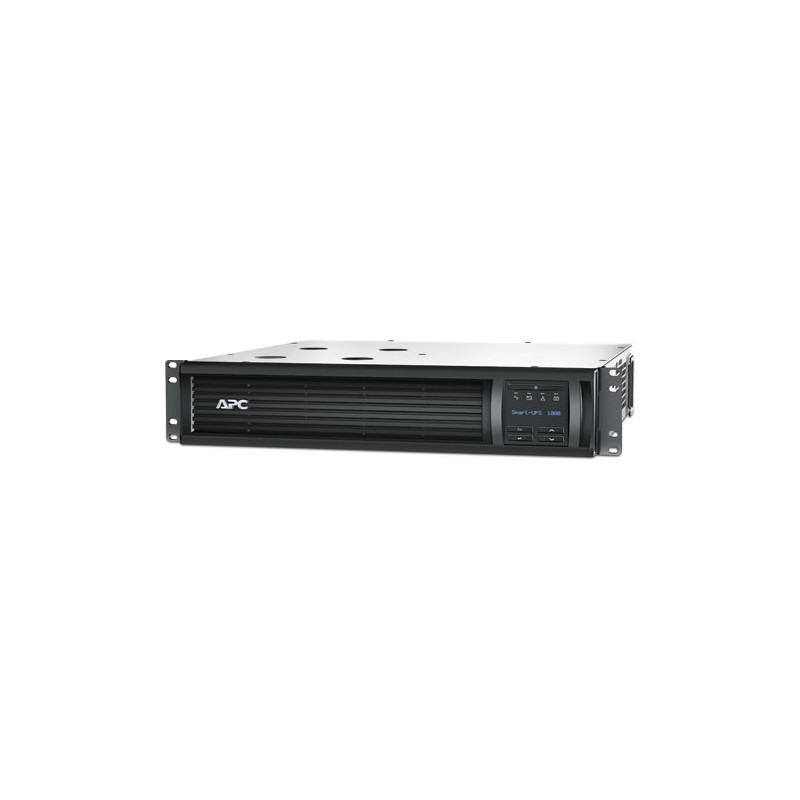

APC SMT1000RMI2U Smart-UPS 1000VA LCD RM 2U 230V
  • APC SMT1000RMI2U Smart-UPS 1000VA LCD RM 2U 230V
  • APC SMT1000RMI2U Smart-UPS 1000VA LCD RM 2U 230V

Please Note, this product is not for consumer use in the European Union.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.



Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.



Audible alarms

Provide notification of changing flywheel conditions



InfraStruXure Central compatible

Enables centralized management via APC InfraStruXure® Central.



SmartSlot

Customize UPS capabilities with management cards.



Cold-start capable

Provides temporary battery power when the utility power is out.



Serial Connectivity

Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.



Resettable circuit breakers

Enables a quick recovery from overload events.



Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced



Disconnected battery notification

Warns when a battery is not available to provide backup power.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.



Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.



Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.



Audible alarms

Provides notification of changing utility power and UPS conditions.



User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)



USB connectivity

Provides management of the UPS via a USB port (not available on all models).



Serial Connectivity

Provides management of the UPS via a serial port.



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery.



Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.



Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.



Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.



Network manageable

Provides remote management of the UPS over the network.



Adjustable voltage sensitivity

Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.



Predicitive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.
AC outlet typesC13 coupler
AC outlets quantity4 AC outlet(s)
Battery capacity336 VAh
Battery recharge time3 h
Battery technologySealed Lead Acid (VRLA)
Cables includedRS-232,USB cable
CertificationCSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
Colour of productBlack
Depth457 mm
DisplayLCD TFT
Efficiency98.2 %
Ethernet LAN (RJ-45) ports quantity1
Form factorRackmount
Height89 mm
Hot-swap batteryYes
Input operation voltage (max)302 V
Input operation voltage (min)151 V
InterfaceRJ-45 Serial,SmartSlot,USB
LED indicatorsYes
Noise level45 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections4 x IEC 320 C13 2 x IEC Jumpers
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power700 W
Output power capacity (VA)1000 VA
Package dimensions (WxDxH)594 x 603 x 251 mm
Package height251 mm
Package weight31450 g
Package width594 mm
Power supply input frequency50/60 Hz
Quantity per pallet8 pc(s)
Quick installation guideYes
Rack capacity2U
Rack mountingYes
Replacement battery cartridgeAPCRBC132
RoHS complianceYes
Serial ports quantity1
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating459 J
Typical backup time at full load8.7 min
Typical backup time at half load31.3 min
USB portYes
WaveformSine
Weight28180 g
Width432 mm
