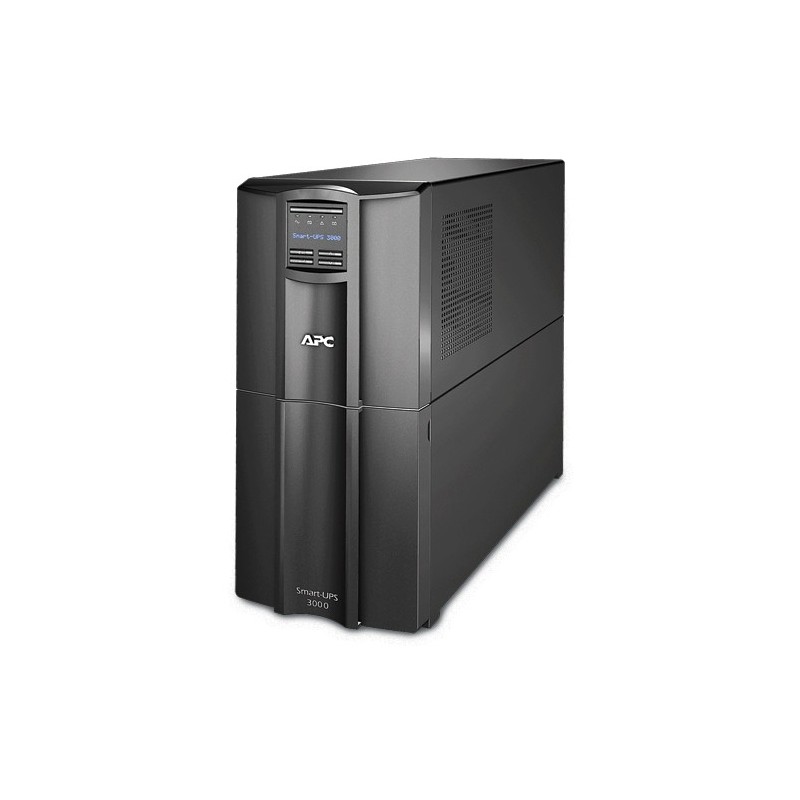

APC SMT3000I Smart-UPS 3000VA LCD 230V
  • APC SMT3000I Smart-UPS 3000VA LCD 230V
  • APC SMT3000I Smart-UPS 3000VA LCD 230V

Please Note, this product is not for consumer use in the European Union.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the

UPS locally with easy to use navigation keys.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Sequenced shutdown and restart

Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity9 AC outlet(s)
Battery capacity816 VAh
Battery recharge time3 h
Battery technologySealed Lead Acid (VRLA)
Cable length1.83 m
Cables includedRS-232,USB cable
CertificationCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Colour of productBlack
Depth544 mm
Dimensions (WxDxH)435 x 197 x 544 mm
Efficiency98.1 %
Form factorTower
Height435 mm
Hot-swap batteryYes
Input connection typeIEC-320 C20
Input operation voltage (max)302 V
Input operation voltage (min)151 V
LED indicatorsStatus
Maximum current16 A
Noise level53 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections8 x IEC 320 C13 1 x IEC 320 C19
Output power2700 W
Output power capacity (VA)3000 VA
Output voltage note220/230/240
Package dimensions (WxDxH)699 x 381 x 762 mm
Package height699 mm
Package weight63700 g
Package width381 mm
Power supply input frequency50/60 Hz
Quantity per pallet9 pc(s)
Quick installation guideYes
Replacement battery cartridgeRBC55
RoHS complianceYes
Serial ports quantity1
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating365 J
Typical backup time at full load5.1 min
Typical backup time at half load17.2 min
USB portYes
Weight52500 g
Width197 mm
