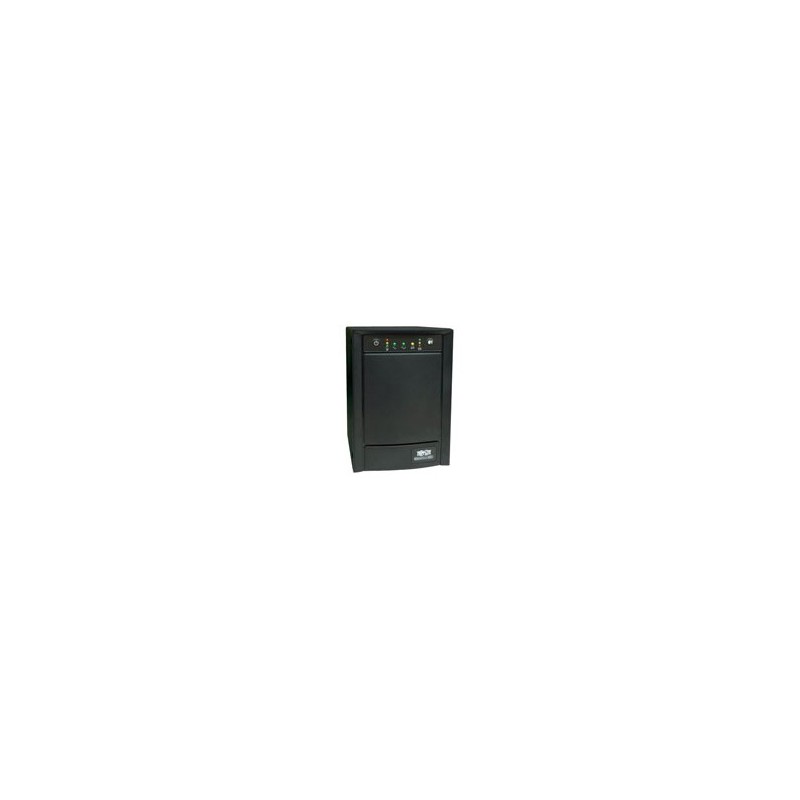

Tripp Lite's SMX750SLT intelligent, line-interactive sine wave UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 15 minutes half load runtime and 5 minutes full load runtime. 750VA/500 watt power handling capability and full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes 6 protected C13 output receptacles total. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory card slot, USB and DB9 serial monitoring ports. Optional SNMPWEBCARD accessory enables remote monitoring of UPS as a managed device via network management console applications. Communications interfaces support messaging of UPS and line power status, plus output power control for delayed or immediate reboot of all connected devices at once. Includes PowerAlert UPS monitoring and unattended shutdown software with management support for an unlimited number of network UPS systems. Single line Tel/DSL and network Ethernet line surge suppression. Built-in audible alarm and 9 LEDs offer status notification for line power, battery power, battery charge level, load level, plus AVR boost and trim operational status information. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, all-black tower housing.

- SMX750SLT line-interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression.
- 750VA/500 watt power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices.
- Large internal batteries offer runtimes of 15 minutes at half load (325VA/250 watts) and 5 minutes at full load (750VA/500 watts).
- Automatic Voltage Regulation (AVR) circuits maintain user-selectable 220, 230 or 240V nominal output over an input voltage range of 151 to 265 (220V)/158 to 277 (230V)/165 to 289 (240V).
- Includes 6 C13 output receptacles.
- IEC320-C14 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles.
- PowerAlert UPS monitoring and unattended shutdown software enables configurable network. broadcast messaging, email notification, event logging and running user-defined script commands
- Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software.
- Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity.
- Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for delayed or immediate reboot of connected equipment.
- Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW).
- 9 LEDs offer continuous status information of UPS operating parameters and site power quality.
- Hot-swappable batteries allow on-site battery replacement without powering off connected equipment.
- Single line Tel/DSL and network Ethernet line surge suppression.
CertificationUL1778, CSA, CE, GOST, SASO, FCC Part 68, ROHS
Colour of productBlack
Dimensions (WxDxH)171 x 229 x 260 mm
Form factorTower
Input connection typeC 14
LED indicatorsYes
Nominal output voltage240, 230 V
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output connections6 x C13
Output power500 W
Output power capacity (VA)750 VA
Package dimensions (WxDxH)248 x 337 x 349 mm
Response time4 ms
Serial ports quantity1
Source data-sheetIcecat.biz
Storage temperature range (T-T)-15 - 50 °C
Surge energy rating480 J
Typical backup time at full load5 min
Typical backup time at half load15 min
Weight13600 g
