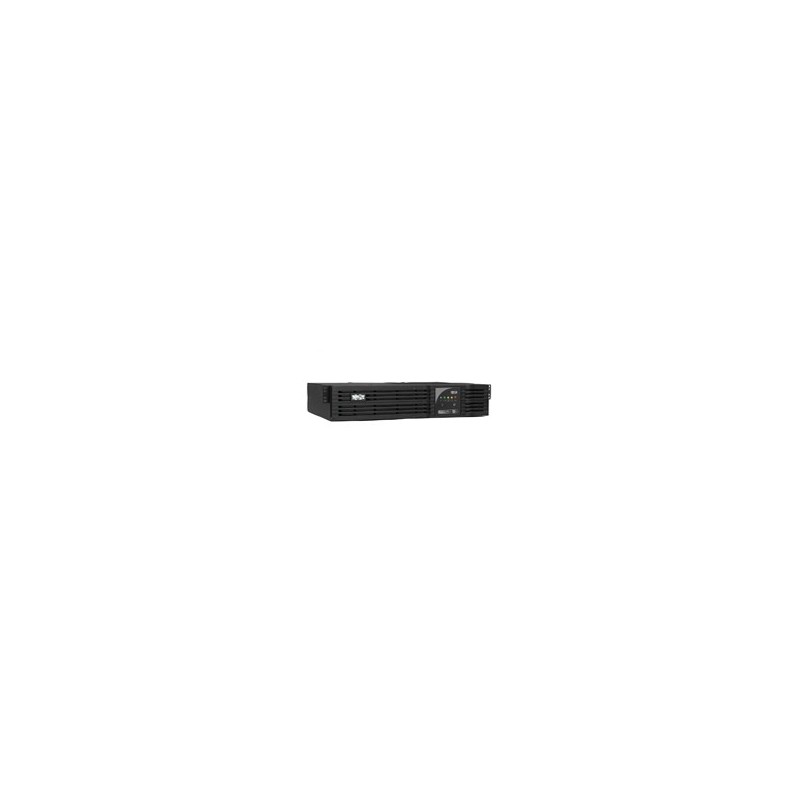

Tripp Lite's SMX1000RT2U intelligent, line interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack enclosure, with included accessories for upright tower placement. Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 159 to 282V. 1000VA/700 watt power handling capability and full time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes a total of 6 outlets with 2 load banks that are individually controllable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency situation. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme.
Battery recharge time |
2 h |
Cable length |
1.8 m |
Certification |
Tested to UL1778, CE EN62040, GOST, SASO, IRAM |
Colour of product |
Black |
Dimensions (WxDxH) |
445 x 343 x 89 mm |
Input connection type |
IEC-C14 |
Nominal input voltage |
230 V |
Nominal output voltage |
230 V |
Non-operating relative humidity (non-condensing) |
0 - 95 % |
Operating temperature range (T-T) |
0 - 40 °C |
Output connections |
6 IEC-C13 |
Output power capacity (VA) |
1000 VA |
Package dimensions (WxDxH) |
610 x 514 x 229 mm |
Package weight |
16300 g |
Power supply input frequency |
50/60 Hz |
Source data-sheet |
Icecat.biz |
Storage temperature range (T-T) |
-15 - 50 °C |
Surge energy rating |
480 J |
Typical backup time at full load |
9 min |
Typical backup time at half load |
21 min |
Weight |
15200 g |
Specific References
- EAN13
- 0037332119223
