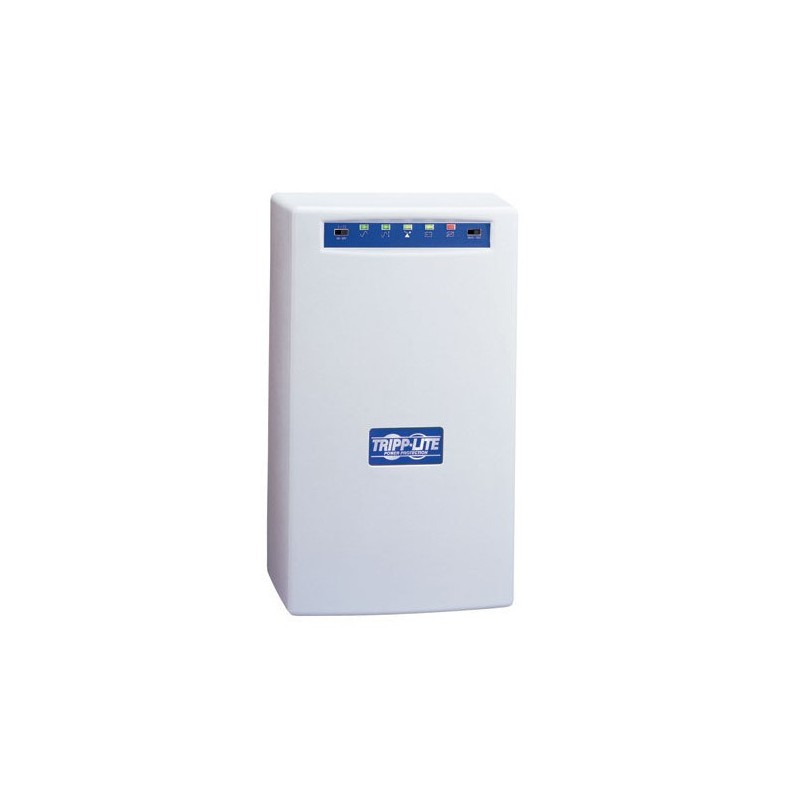

Tripp-Lite SMARTINT1500 uninterruptible power supply (UPS)
  • Tripp-Lite SMARTINT1500 uninterruptible power supply (UPS)
  • Tripp-Lite SMARTINT1500 uninterruptible power supply (UPS)
Tripp Lite's SMARTINT1500 intelligent, line interactive UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures. 1500VA/940 watt power handling capability supports a variety of networking, telecom and various other application types, including the support of multiple network workstations. Includes a total of 6 IEC320-C13 outlets. Supports remote monitoring of UPS and site power conditions via built-in DB9 serial and DB9 contact closure ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Wall mountable with optional UPSWM wallmount bracket. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, small-footprint tower. Two year warranty.

- 1500VA/940 watt power handling capability supports a variety of networking, telecom and various other application types
- Built-in voltage regulation and battery support, plus complete AC suppression prevents equipment damage, data loss and downtime
- Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures
- Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 230V nominal output over an input voltage range of 165-277V
- Includes 1 DB9 serial and 1 DB9 contact closure monitoring port for remote monitoring of UPS status and site power conditions
- Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity
- PowerAlert UPS monitoring and unattended shutdown software with complete cabling included
- Includes 6 UPS-supported outlets
- Notification of system status via 5 LEDs and multi-function audible alarms
- Wall mountable with UPSWM wallmount bracket
- Attractive small footprint beige tower housing
- Hot-swappable/user replaceable batteries allow on-site battery replacement
- Network-grade AC surge suppression
- UPS battery set ships fully assembled, no time consuming connection of internal batteries by user is necessary
AC outlet typesC13 coupler
CertificationUL1778
Colour of productWhite
Depth235 mm
Form factorTower
Height324 mm
Input operation voltage (max)230 V
Input operation voltage (min)230 V
InterfaceDB9
LED indicatorsYes
Maximum current10 A
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output operation voltage (max)230 V
Output operation voltage (min)230 V
Output power940 W
Output power capacity (VA)1500 VA
Power factor0.6
Power plugC14 coupler
Power protection featuresOver voltage, Under voltage
Power supply input frequency50/60 Hz
Source data-sheetIcecat.biz
Storage temperature range (T-T)-15 - 50 °C
Surge energy rating480 J
Typical backup time at full load7 min
Typical backup time at half load20 min
Width190 mm
