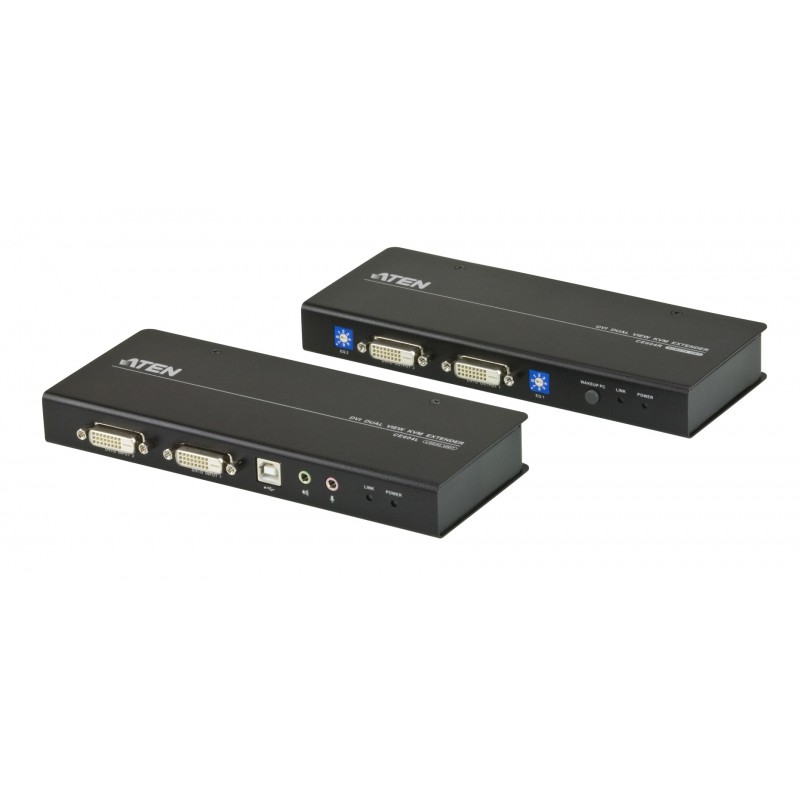

Aten CE604

DVI Dual View KVM Extender, 1920 x 1200 Max, 60 Max, Cat5e, RS-232

More details

CE604

In Stock

The CE604 is a DVI Dual View USB based KVM Extender, features Dual View functionality which enables the video output to ... Read More

Need a custom made cabinet? we have it covered

New product

£949.67

£791.39 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

The CE604 is a DVI Dual View USB based KVM Extender, features Dual View functionality which enables the video output to seamlessly display on two monitors.With RS-232 serial functionality, that allows access to a computer system from a remote console up to 60m away. The CE604 is aimed for control and security purposes, targeting to fi nancial and industrial market.



The CE604 is equipped with RS-232 serial channel for connecting to a serial terminal, or serial devices such as touchscreens and barcode scanners. In addition, it supports advanced PC Wake- Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site. The CE604 eliminates the need for traveling back and forth between the local computer and remote console, effi cient and fl exible.



The CE604 is ideal for anywhere that the console needs to be in a conveniently accessible location, but the system equipment needs to reside in a safe place – away from dust, dirt, and harsh environmental infl uences. It also provides a cost-effective way of keeping sensitive data such as fi nancial and personal information safe in a heavily secured data center, but still allowing remote access to users.
Cables includedDVI
Colour of productBlack
DC-in jackYes
DVI-D ports quantity4
Maximum transfer distance60 m
Operating relative humidity (H-H)0 - 80 %
Operating relative humidity range0 - 80 %
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
RoHS complianceYes
RS-232 ports2
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
Weight480 g
EAN4719264640025
ManufacturerAten
