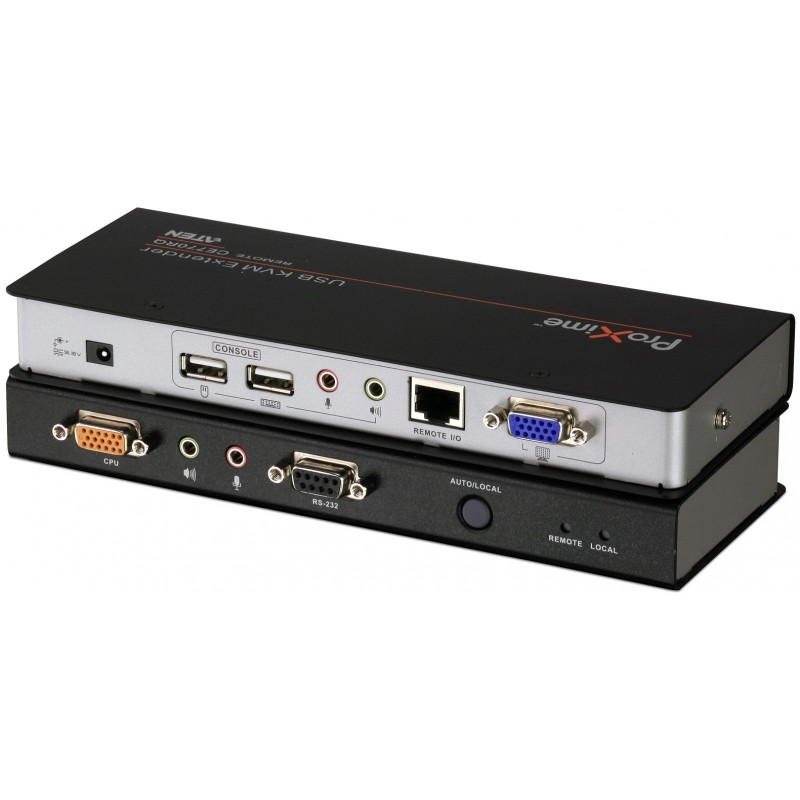

Aten CE770

USB VGA KVM Extender with Audio, RS-232 and Deskew (300m)

More details

CE770

Out of Stock

Features - Local and Remote Units connect at distances up to 300 m using Cat 5e cable - Dual console operation - control ... Read More

Browse our range of high quality PDUs

New product

£358.34

£298.61 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

Features

- Local and Remote Units connect at distances up to 300 m using Cat 5e cable

- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles

- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance

- Built-in ASIC for greater reliability and compatibility

- Auto Signal Compensation (ASC)

- RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners

- Sun/Mac keyboard support and emulation*

- Audio Enabled - supports stereo speakers and microphone

- USB overcurrent detection and prevention

- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button

- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection

- High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)

- Superior Audio - no loss in audio quality at 300 m

- Spports Wide Screen formats

- Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B

- Hot pluggable

- Rack mountable

- Easy to install - no software required - connecting cables to the devices is all it takes



Package Content

- 1x CE770L USB KVM Extender (Local Unit);

- 1x CE770RQ USB KVM Extender (Remote Unit);

- 1x USB KVM Cable (1.8m);

- 2x Power Adapter;

- 1x Rack Mount Kits;

- 2x Grounding Wires;

- 1x User Manual;

- 1x Quick Start Guide.
AC input voltage5.3 V
Colour of productBlack
Compatible operating systemsWindows 7 Mac Sun
Connectivity technologyWired
Dimensions (WxDxH)200 x 800 x 25 mm
Ethernet LAN (RJ-45) ports quantity1
Keyboard port typeUSB
LED indicatorsYes
ManualYes
Maximum resolution1920 x 1200 pixels
Microphone inYes
Operating temperature range (T-T)0 - 50 °C
Power supply typeDC
Quick start guideYes
RoHS complianceYes
Source data-sheetIcecat.biz
Speaker/ headphone/ line-out jack1
Storage temperature range (T-T)-20 - 60 °C
USB 2.0 ports quantity2
Video port typeVGA
Weight490 g
EAN4710423776432
ManufacturerAten
