Features
- Local and Remote Units connect at distances up to 60 m using Cat 5e cable
- Allows access to a computer or KVM installation from a remote console (up to 60 m)
- Features ATEN technology that allows A/V transmission over one cat 5e cable
- The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals
- Manual compensation control to adjust signal strength in order to compensate for distance
- RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
- Audio Enabled – supports stereo speakers and microphone
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Supports Wide Screen formats
- Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions
- Hot pluggable
- Rack mountable
- Easy to install – no software required – connecting cables to the devices is all it takes
- Firmware upgrade
Package Contents

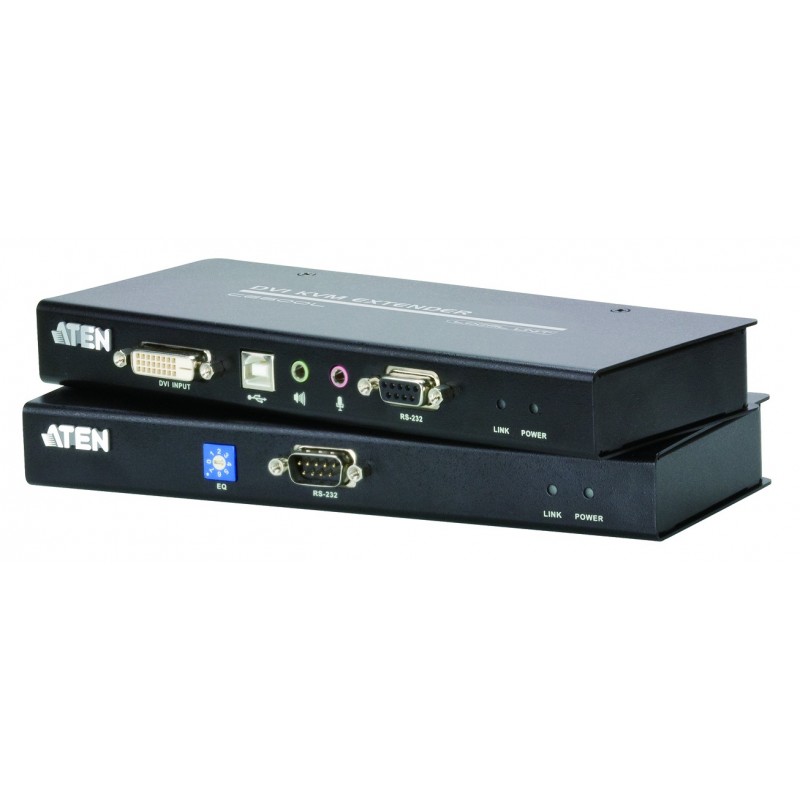

- 1x CE600L DVI KVM Extender (Local Unit)
- 1x CE600R DVI KVM Extender (Remote Unit)
- 1x 2L-7D02U 1.8 m USB DVI-D Single Link KVM Cable Set
- 2x 0AD6-1605-24EG Power Adapters
- 1x Mounting Kit
- 1x User Instructions
Cables included |
DVI,USB |
Colour of product |
Black |
DVI-D ports quantity |
2 |
Manual |
Yes |
Maximum transfer distance |
60 m |
Microphone in |
Yes |
Quick start guide |
Yes |
RoHS compliance |
Yes |
RS-232 ports |
2 |
Source data-sheet |
Icecat.biz |
USB 2.0 ports quantity |
3 |
Specific References
- EAN13
- 0672792002991
