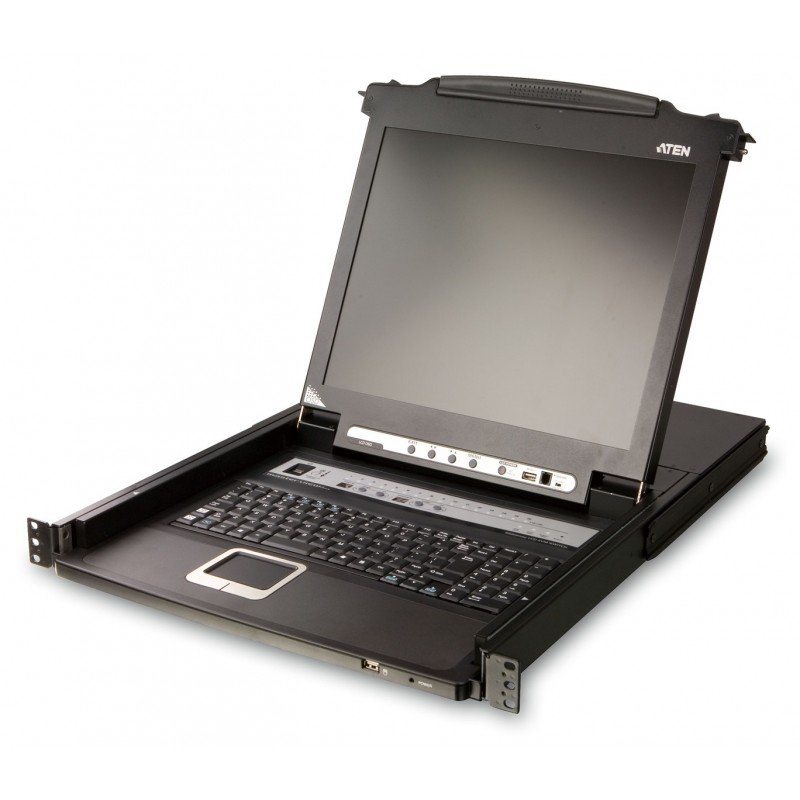

Aten CL5716

16-Port Slideaway™ LCD KVM Switch

More details


In Stock

Features - Integrated KVM console with 17" LCD monitor in a Slideaway™ housing. - Available with or without Fingerprint ... Read More

Need a custom made cabinet? we have it covered

New product


£855.64 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details


- Integrated KVM console with 17" LCD monitor in a Slideaway™ housing.

- Available with or without Fingerprint Identification Reader.

- Space saving technology - up to two consoles (one bus) control up to 16 computers.

- Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A).

- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice.

- LCD module USB port allows each computer to access USB peripherals.

- LCD module rotates up to 115 degrees for a more comfortable viewing angle.

- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun.

- Supports multimedia USB keyboards for PC, Mac and Sun.

- Auto PS/2 and USB interface detection.

- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere.

- Supports external USB mouse.

- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz.

- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus.

- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position.

- Port names automatically reconfigured when station sequence is changed.

- Two level password security - only authorized users can view and control computers.

- Supports one administrator and four user accounts with separate profiles.

- Auto Scan mode enables continuous monitoring of user-selected computers.

- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation.

- Hot pluggable - add or remove computers without having to power down the switch.

- Beeper on/off via hotkey and OSD.

- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable.

Package Contents

- 1x CL5716 LCD KVM Switch with standard Rack Mount Kit

- 1x 2L-5202P PS/2 KVM Cable

- 1x 2L-5202U USB KVM Cable

- 1x LIN5-27X6-U21G 5-in-1 USB / PS/2 Console Cable

- 1x Firmware Upgrade Cable

- 1x 1ADP-0005-005G Power Cord (AC Power Models)

- 1x User Instructions
Colour of productBlack
Compatible operating systemsWindows 2000/XP/Vista Linux Mac Sun
Connectivity technologyWired & Wireless
Dimensions (WxDxH)480 x 634 x 44 mm
I/O ports1 x SPHD-18 Male 16 x SPHD-15 Female 2 x USB Type-A Female 1 x DB-25 Male 1 x RJ-11 Female 1 x 3-prong AC Socket
Keyboard port typeUSB, PS/2
LED indicatorsYes
Maximum resolution1280 x 1024 pixels
Mouse port typeUSB, PS/2
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Ports quantity16
Power consumption (typical)27.5 W
Power requirements100-240 V, 1 A
Power supply typeAC
Storage relative humidity (H-H)0 - 80 %
Storage relative humidity range0 - 80 %
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
Weight14000 g
