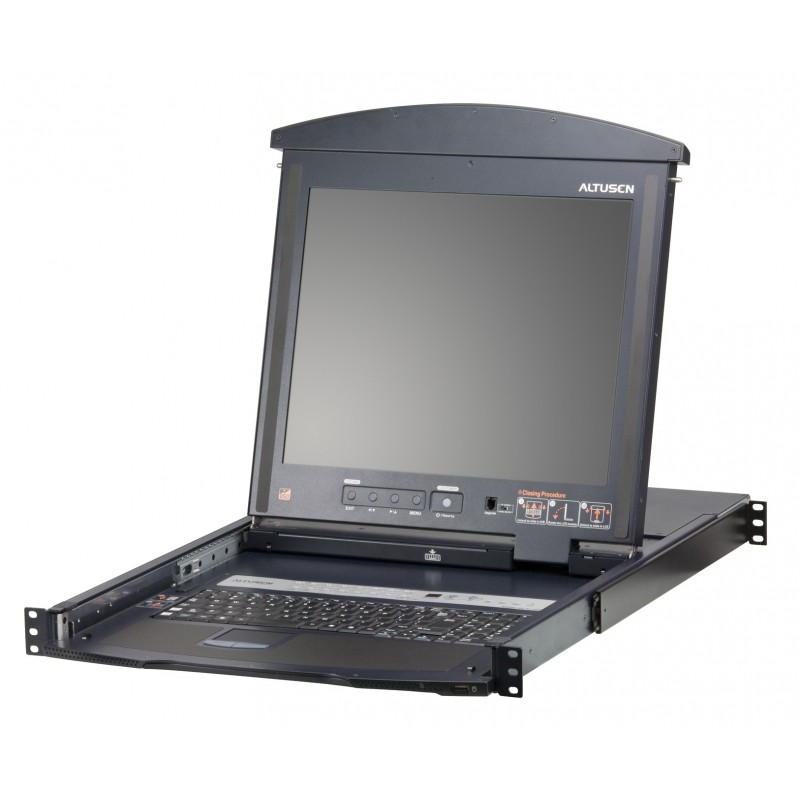

Images are for illustrative purposes only.

Aten KL1516AM

16-Port 43.18 cm (17 ") LCD CAT5e/6 KVM Switch (Dual Rail)

More details

KL1516AM

Out of Stock

Features - Integrated KVM console with 17" or 19" LCD monitor in a Dual Rail housing - A single console controls up to ... Read More

Need a custom made cabinet? we have it covered

New product

£2,153.12

£1,794.27 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

Features



- Integrated KVM console with 17" or 19" LCD monitor in a Dual Rail housing

- A single console controls up to 16 computers

- Space-Saving RJ-45 connectors and Cat 5e/6 cabling

- KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types

- OSD tree structure makes finding and managing computers easy

- Conveniently located station and port selectors with LED displays to quickly switch to target computers

- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in U of rack space

- Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)

- Supports external USB mouse

- Dual Rail - LCD monitor slides independently of the keyboard/touchpad

- LCD module rotates up to 120 degrees for a more comfortable viewing angle

- Console lock - enables the console drawer to remain securely locked away in position when not in use

- Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions

- Daisy chain up to 31 additional KVM switches to control up to 512 computers

- Auto Scan mode enables continuous monitoring of user-selected computers

- Multiplatform support: PC, Mac, Sun and Serial

- Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters

- Configure port access rights for users on a port - by - port basis

- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)

- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts

- Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation

- LCD power button helps save energy and prolong displays’ life

- Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously

- Adapter ID

- Firmware Upgradeable



Package Contents



- 1x KL1516A 16-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit

- 1x Firmware Upgrade Cable

- 1x 1ADP-0005-005G Power Cord

- 1x User Instructions
AC input frequency50/60 Hz
AC input voltage100-240 V
Built-in displayYes
Colour of productBlack
DisplayLCD
Display diagonal17 "
Display resolution1280 x 1024 pixels
Ethernet LANYes
Form factor1U
InterfaceVGA, USB, PS/2
Keyboard port typeUSB, PS/2
Maximum resolution1280 x 1024 pixels
Mouse port typeUSB, PS/2
Number of computers controlled16
Operating relative humidity (H-H)0 - 80 %
Operating relative humidity range0 - 80 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Power consumption (typical)24 W
RoHS complianceYes
Source data-sheetIcecat.biz
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
EAN4710423777507
ManufacturerAten
