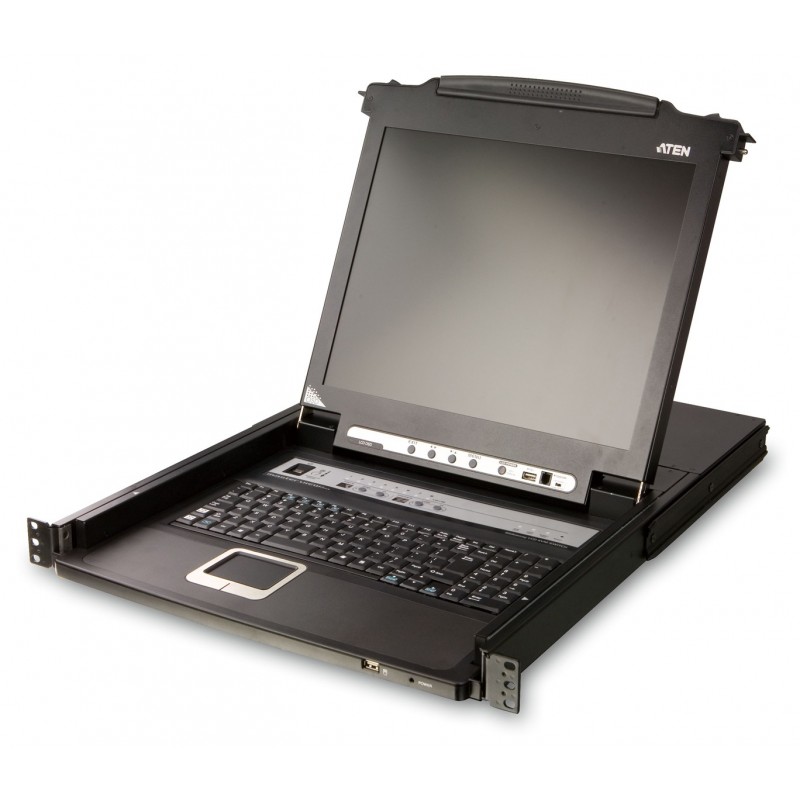

Aten CL5708

8-Port Slideaway™ LCD KVM Switch

More details

CL5708M

In Stock

Features - Integrated KVM console with 17" or 19" LCD monitor in a Slideaway™ housing - Available with or without ... Read More

Need a custom made cabinet? we have it covered

New product

£866.67

£722.23 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

Features

- Integrated KVM console with 17" or 19" LCD monitor in a Slideaway™ housing

- Available with or without Fingerprint Identification Reader**

- Space saving technology - up to two consoles (one bus) control up to 8 computers

- Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)

- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice

- LCD module USB port allows each computer to access USB peripherals*

- LCD module rotates up to 115 degrees for a more comfortable viewing angle

- Multiplatform support – Windows, Linux, Mac, and Sun

- Supports multimedia USB keyboards for PC, Mac and Sun

- Auto PS/2 and USB interface detection

- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere

- Supports external USB mouse

- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz

- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus

- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position

- Port names automatically reconfigured when station sequence is changed

- Two level password security - only authorized users can view and control computers

- Supports one administrator and four user accounts with separate profiles

- Auto Scan mode enables continuous monitoring of user-selected computers

- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation

- Hot pluggable - add or remove computers without having to power down the switch

- Beeper on/off via hotkey and OSD

- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable



Package Contents

- 1x CL5708 LCD KVM Switch with standard Rack Mount Kit

- 1x 2L-5202P PS/2 KVM Cable

- 1x 2L-5202U USB KVM Cable

- 1x LIN5-27X6-U21G 5-in-1 USB / PS/2 Console Cable

- 1x Firmware Upgrade Cable

- 1x 1ADP-0005-005G Power Cord (AC Power Models)

- 1x User Instructions
Built-in displayYes
Colour of productBlack
Connectivity technologyWired
Dimensions (WxDxH)480 x 634 x 44 mm
DisplayLCD
Display diagonal17 "
I/O ports1 x SPHD-18 Male 8 x SPHD-15 Female 2 x USB Type-A Female 1 x DB-25 Male 1 x RJ-11 Female 1 x 3-prong AC Socket
Keyboard port typeUSB, PS/2
Maximum resolution1280 x 1024 pixels
Mouse port typeUSB, PS/2
Number of computers controlled8
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Power consumption (typical)27.5 W
Power requirements100-240 V, 1 A
Power supply typeAC
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
Video port typeVGA
Weight13770 g
EAN4710423773684
ManufacturerAten
