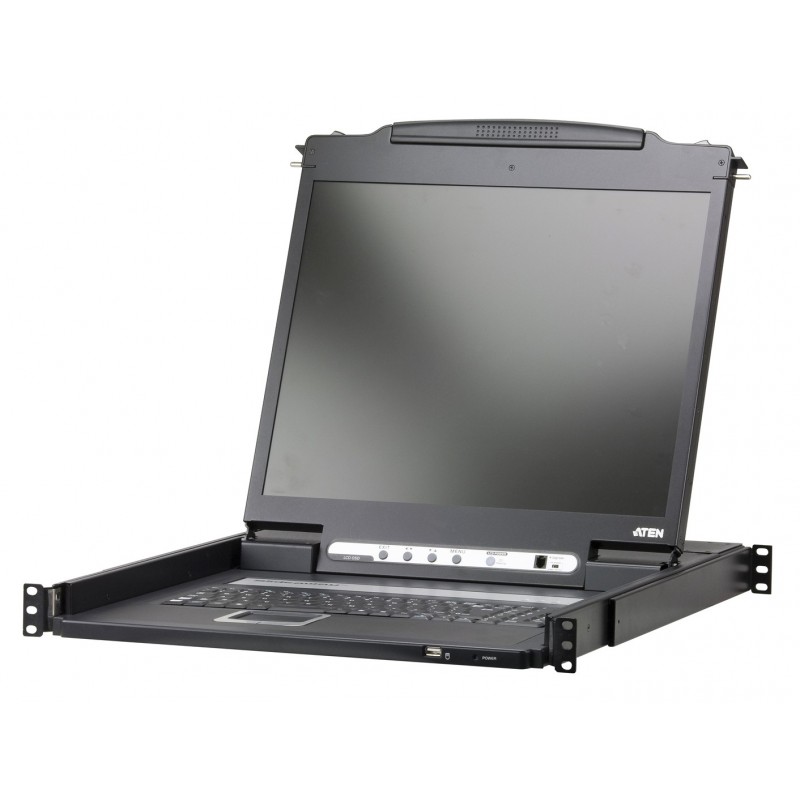

The CL6700 DVI LCD Console is a LCD KVM console featuring an integrated 19" DVI LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing with audio support. The CL6700 serves as the front end sliding console for compatible DVI KVM switches. This means users who already have a compatible KVM switch can take advantage of the space saving and efficiency benefi ts of the sliding console module without having to purchase a KVM switch module.

For added convenience, a port for an external USB mouse is provided on the unit’s front panel, while ports for an extra console (USB mouse, USB keyboard, DVI monitor and VGA monitor) for a second user are provided on the rear panel.

Features:

• Integrated KVM console with a 19” DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
• Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
• Supports an external console with USB / DVI / VGA connectors
• Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
• Audio support (speakers)
• Superior video quality – up to 1280 x 1024 @75 Hz; DDC, DDC2, DDC2B
• Standard 105-key keyboard; Sun keyboard emulation
• Multiplatform support – Windows, Linux, Mac, and Sun
• Compatible with most ATEN DVI KVM Switches
• Adjustable depth to fit within the rack
• Firmware upgradeable
• Console lock - enables the console drawer to remain securely locked away in position when not in use
• DDC emulation - video settings of each computer are automatically adjusted for optimal output to the monitor

Package Contents

• 1x CL6700 DVI LCD Console with Standard Rack Mount Kit
• 1x Custom USB DVI KVM Cable Set
• 1x Power Cord
• 1x Firmware Upgrade Cable
• 1x User Instructions
