Features



- One Dual Display USB console independently and simultaneously controls two DVI computers, two HD computers or devices, and two additional USB devices

- Dual Display – simultaneously control one computer on one display and view another source on the other display

- Graphical User Interface (GUI) for convenient, user-friendly operation

- Innovative desktop control features include on-screen fi le transfer and copy-paste functionality, and cursor shift function in dual display mode

- 2-port USB 2.0 hub built in; fully compliant with USB 2.0 specification

- Independent switching of KVM, USB peripheral, and audio focus

- Computer selection via front panel pushbuttons, hotkeys, and GUI

- HDMI compatible; HDCP compatible

- Dolby True HD and DTS HD Master Audio support

- Superior video quality – up to 1920 x 1200 (DVI Single Link), 1080p (HDMI)

- Supports widescreen resolutions

- Multiplatform support – Windows, Linux, and Mac

- Cursor Shift Function – in dual-display mode, the mouse cursor can move back and forth across both displays, shifting the KVM focus

- Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

- Power on detection – if one of the computers is powered off, the CM0264 automatically switches to the next powered-on computer

- Console keyboard port emulation/bypass feature supports most gaming/multimedia keyboards

- Complete keyboard emulation for error-free booting

- Mac keyboard support and emulation*

- Auto Scan Mode for monitoring all computers and HDMI devices

- Firmware Upgradable



* 1. PC keyboard combinations emulate Mac keyboards.

* 2. Mac keyboards only work with their own computers



Package Contents

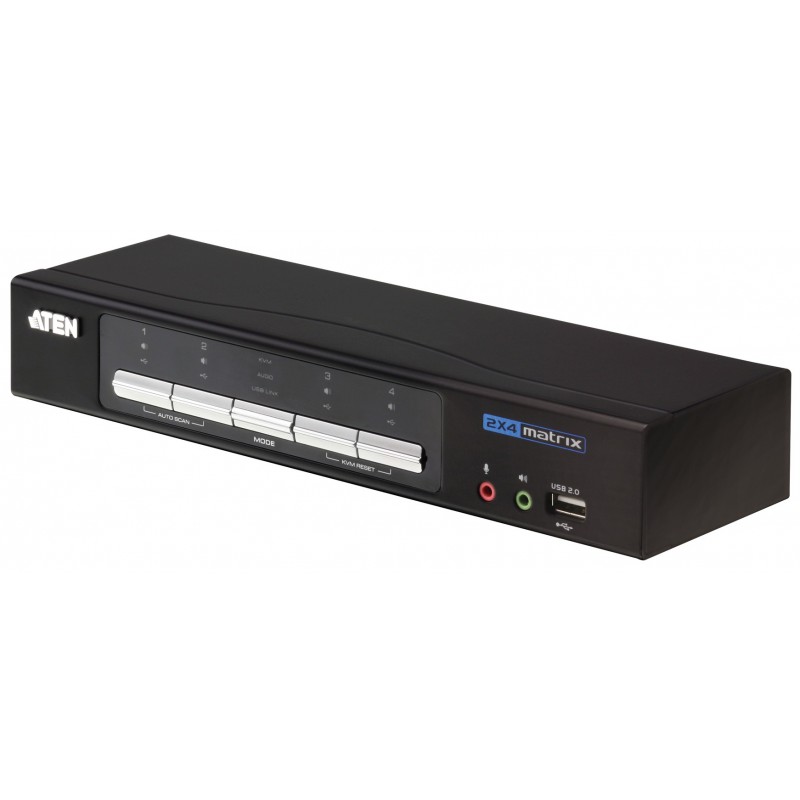

- 1x CM0264 2x4 DVI-HD Audio/Video Matrix KVMP™ Switch

- 2x 2L-7D02UH HDMI KVM Cable Sets

- 2x 2L-7D02U USB DVI-D Single Link KVM Cables

- 1x 0AD6-1605-24EG Power Adapter

- 1x UC20KMZ-A-11 USB-to-PS/2 Converter

- 1x Foot Pad Set (4 pcs)

- 1x User Instructions
