Aten CS1794

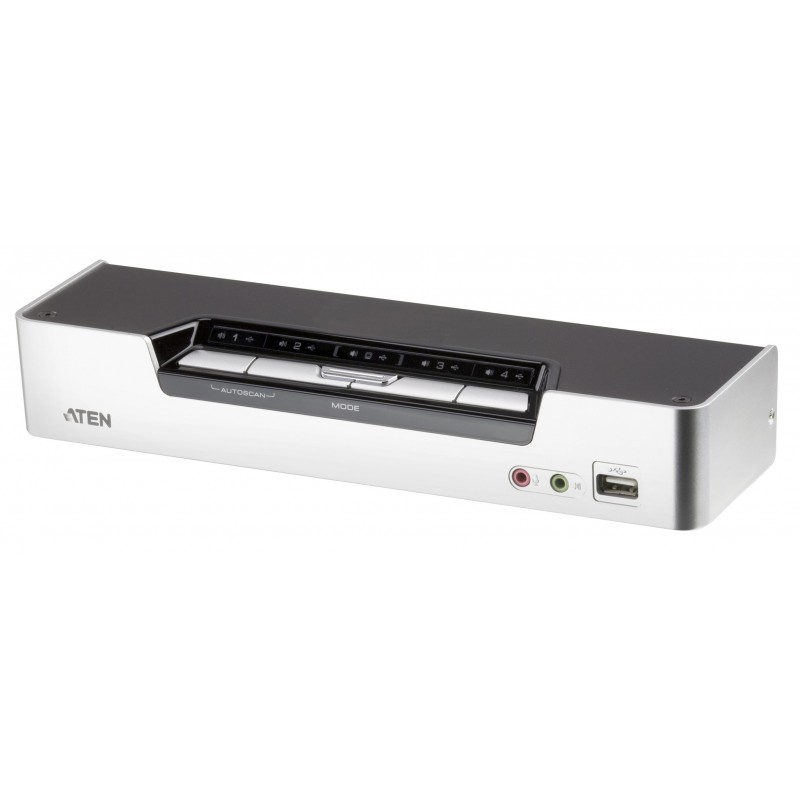

4-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included)

More details

CS1794

Out of Stock

Features - 4-port HDMI USB 2.0 KVMP™ Switch - One USB console controls four HDMI-interface computers and two additional ... Read More

Browse our range of high quality PDUs

New product

£275.00

£229.16 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

Features



- 4-port HDMI USB 2.0 KVMP™ Switch

- One USB console controls four HDMI-interface computers and two additional USB devices

- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification

- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys

- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant

- Dolby True HD and DTS HD Master Audio support

- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)

- Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer

- Supports widescreen resolutions

- Multiplatform support - Windows, Linux,and Mac

- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice

- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

- Complete keyboard emulation for error-free booting

- Mac keyboard support and emulation*

- Auto Scan Mode for monitoring all computers and HDMI devices

- Firmware Upgradable



* 1. PC keyboard combinations emulate Mac Keyboards

* 2. Mac keyboards only work with their own computers



Package Contents



- 1x CS1794 USB 2.0 HDMI KVMP™ Switch

- 4x 2L-7D02UH HDMI KVM Cable Sets

- 1x Firmware Upgrade Cable

- 1x 0AD6-1605-24EG Power Adapter

- 1x UC20KMZ-A-11 USB-to-PS/2 Converter

- 1x User Instructions
AC input voltage5.3 V
Built-in displayNo
Colour of productSilver
Compatible operating systemsWindows 7 Linux Mac
Connectivity technologyWired
DC-in jackYes
External power adapterYes
Keyboard port typeUSB
LED indicatorsYes
Maximum resolution1920 x 1200 pixels
Mouse port typeUSB
Number of computers controlled4
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Power consumption (typical)4.8 W
Power supply typeDC
Source data-sheetIcecat.biz
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
Video port typeHDMI
EAN4710423775718
ManufacturerAten
