Images are for illustrative purposes only.

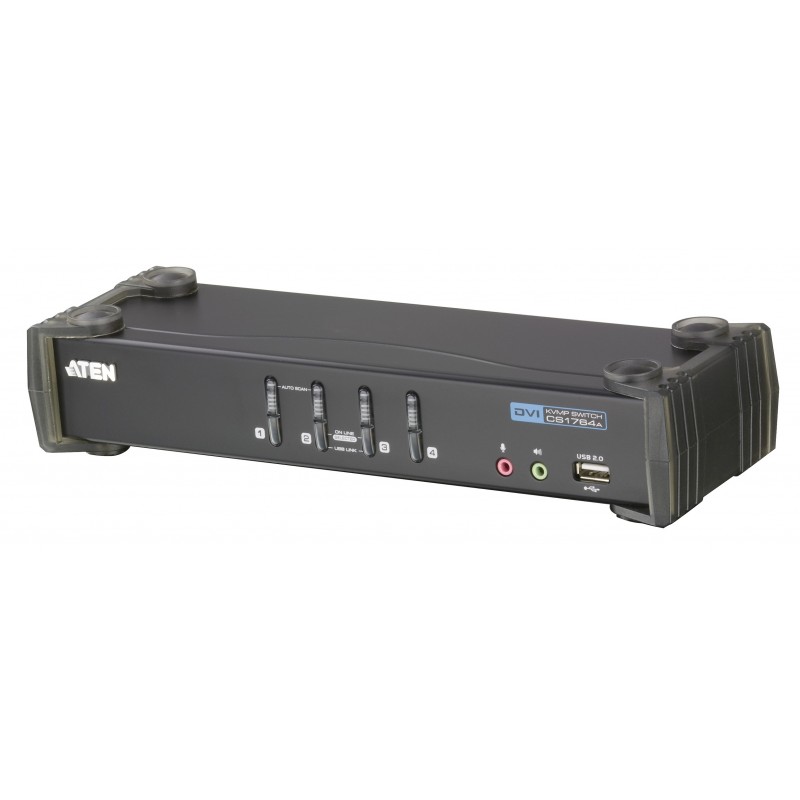

Aten CS1764A

4-Port USB DVI KVM Switch with Audio & USB 2.0 Hub (KVM Cables included)

More details

CS1764A

In Stock

Features - One USB console controls four DVI computers and two additional USB 2.0 devices - 2-port USB 2.0 hub built in ... Read More

Browse our range of high quality PDUs

New product

£173.34

£144.45 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

Features



- One USB console controls four DVI computers and two additional USB 2.0 devices

- 2-port USB 2.0 hub built in

- Fully compliant with the USB 2.0 specification

- Computer selection via front panel pushbuttons and hotkeys

- Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems

- Multiplatform support - Windows, Linux, Mac and Sun

- Superior video quality - 1920 x 1200, 60Hz; DDC2B

- Independent switching of KVM, USB, and Audio focus

- DVI digital and analog monitor support - fully compliant with the DVI specifications

- HDCP compliant

- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

- Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer

- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice

- Sun /Mac keyboard support and emulation*

- Auto Scan Mode for monitoring all computers

- Firmware upgradable via USB



* 1. PC keyboard combinations emulate Sun/Mac keyboards

* 2. Sun/Mac keyboards only work with their own computers



Package Contents



- 1x CS1764A USB 2.0 DVI KVMP™ Switch

- 4x 2L-7D02U USB DVI-D Single Link KVM Cables

- 1x 0AD6-1605-24EG Power Adapter

- 1x User Instructions
Built-in displayNo
Colour of productBlack
Connectivity technologyWired
DC-in jackYes
Depth270 mm
Dimensions (WxDxH)87 x 270 x 55 mm
Headphone outputs4
Height55 mm
Keyboard port typeUSB
Maximum resolution1920 x 1200 pixels
Mouse port typeUSB
Number of computers controlled4
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Ports quantity4
Power consumption (typical)10.7 W
Power requirementsDC5.3V
Source data-sheetIcecat.biz
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 60 °C
Video port typeDVI-I
Weight940 g
Width87 mm
EAN4710423776449
ManufacturerAten
