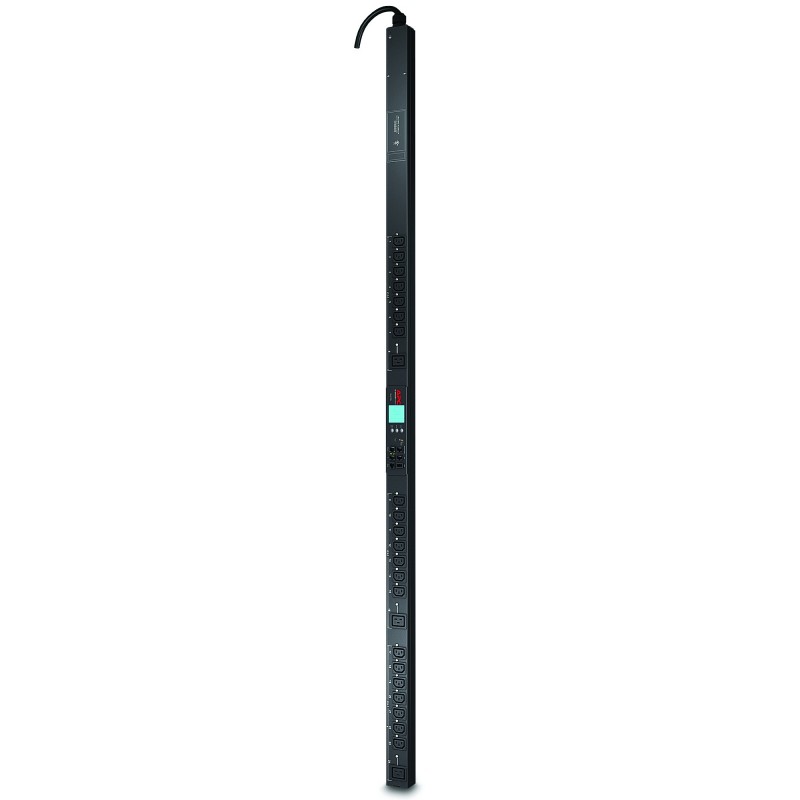

APC AP8981 2G Switched Rack PDU

Rack PDU 2G, Switched, ZeroU, 11kW, 230V, (21) C13 & (3) C19

More details

AP8981

In Stock

APC Switched Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E , Cord Length: 6 feet ( ... Read More

Browse our range of high quality PDUs

New product

£1,374.95

£1,145.79 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

APC Switched Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V, 230V , Output Connections: IEC 320 C13,IEC 320 C19.



Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable.
Cable length1.83 m
Colour of productBlack
Dimensions (WxDxH)56 x 46 x 1791 mm
Input connection typeIEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Input frequency50/60 Hz
Maximum input current per phase20 A
Maximum total current draw per phase20 A
Nominal input voltage400 V
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)-25 - 65 °C
Operating temperature range (T-T)-25 - 65 °C
Output connections(21) IEC 320 C13, (3) IEC 320 C19
Package dimensions (WxDxH)165 x 114 x 2002 mm
Package weight8950 g
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-5 - 45 °C
Storage temperature range (T-T)-5 - 45 °C
Weight7000 g
EAN0731304277187
ManufacturerAPC
