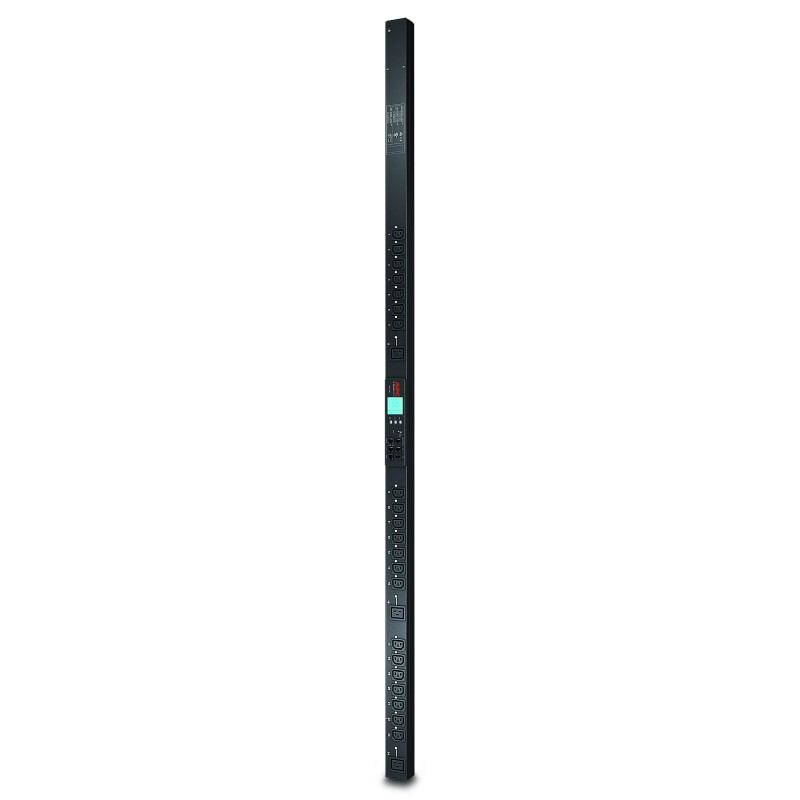

APC Switched Rack PDU 2G AP8959
  • APC Switched Rack PDU 2G AP8959
  • APC Switched Rack PDU 2G AP8959
  • APC Switched Rack PDU 2G AP8959
  • APC Switched Rack PDU 2G AP8959
  • APC Switched Rack PDU 2G AP8959
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Remote Individual Outlet Control

Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Local Current Monitoring Display

The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Power Delays

Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Integrates with InfraStruXure Central

An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Agility

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
CertificationRoHS
Colour of productBlack
Dimensions (WxDxH)56 x 46 x 1791 mm
I/O portsIEC-320 C20
Input frequency50/60 Hz
Input voltage200208230 V
Operating altitude0 - 15000 m
Operating relative humidity range5 - 95 %
Operating temperature range (T-T)-5 - 45 °C
Rated current16 A
Source data-sheetIcecat.biz
Storage relative humidity range5 - 95 %
Storage temperature range (T-T)-25 - 65 °C
Weight5730 g

Similar products

  • APC AP7921 Switched Rack PDU
    APC AP7921 Switched Rack PDU
  • APC AP7920 Switched Rack PDU
    APC AP7920 Switched Rack PDU
  • APC AP8958 2G Switched Rack PDU
    APC AP8958 2G Switched Rack PDU
  • APC AP8959EU3 2G Switched Rack PDU
    APC AP8959EU3 2G Switched Rack PDU

APC AP8959 2G Switched Rack PDU

Rack PDU 2G, Switched, ZeroU, 20A/208V, 16A/230V, (21) C13 & (3) C19

AP8959

Out of Stock

£7,753.62
£6,461.35 Ex VAT.
