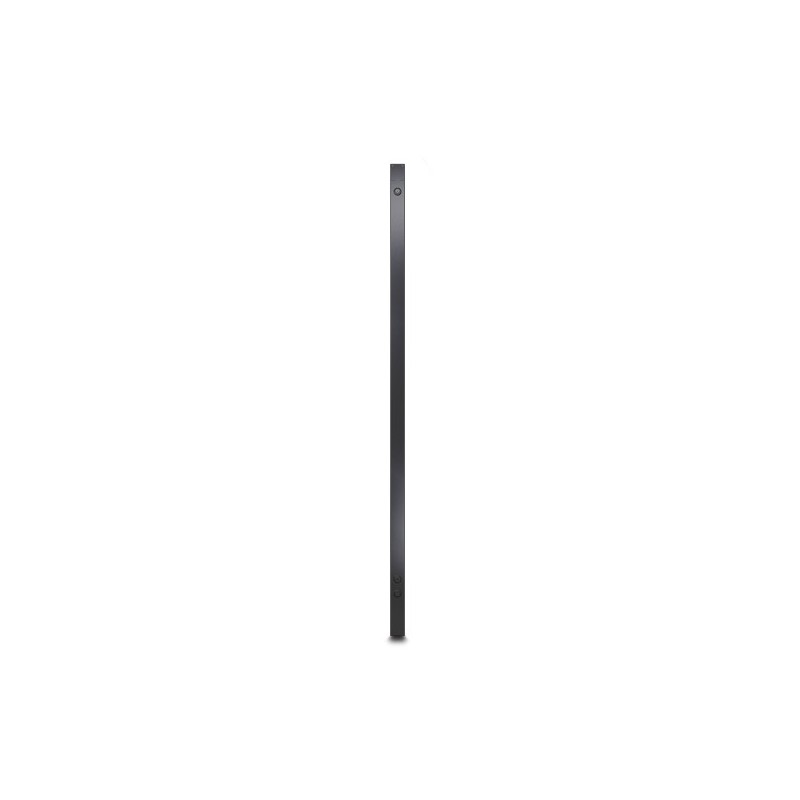

APC AP8959EU3 2G Switched Rack PDU

Rack PDU 2G, Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord

Reference: AP8959EU3

Out of Stock

APC Switched Rack PDU , Input: 200V, 208V, 230V , Input Connections: IEC 309 16A 2P+E , Cord Length: 9.84 feet ( 3 meters ) , ... Read More

Need a custom made cabinet? we have it covered

Condition: New product

Free Next Day Delivery - on all orders over £100

More info
Details

APC Switched Rack PDU , Input: 200V, 208V, 230V , Input Connections: IEC 309 16A 2P+E , Cord Length: 9.84 feet ( 3 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19

Includes: Installation guide, Locking input power cord, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable

Cable length	3 m
Certification	cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE
Colour of product	Black
Dimensions (WxDxH)	56 x 46 x 1791 mm
Input connection type	IEC 309 16A 2P+E
Input frequency	50/60 Hz
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Nominal input voltage	200 - 230 V
Nominal output voltage	230 V
Operating relative humidity (H-H)	5 - 95 %
Operating relative humidity range	5 - 95 %
Operating temperature (T-T)	-5 - 45 °C
Operating temperature range (T-T)	-5 - 45 °C
Output connections	(21) IEC 320 C13, (3) IEC 320 C19
Package dimensions (WxDxH)	165 x 114 x 2002 mm
Package weight	8590 g
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	5 - 95 %
Storage relative humidity range	5 - 95 %
Storage temperature (T-T)	-25 - 65 °C
Storage temperature range (T-T)	-25 - 65 °C
Weight	5730 g
EAN	0731304277149
Manufacturer	APC
