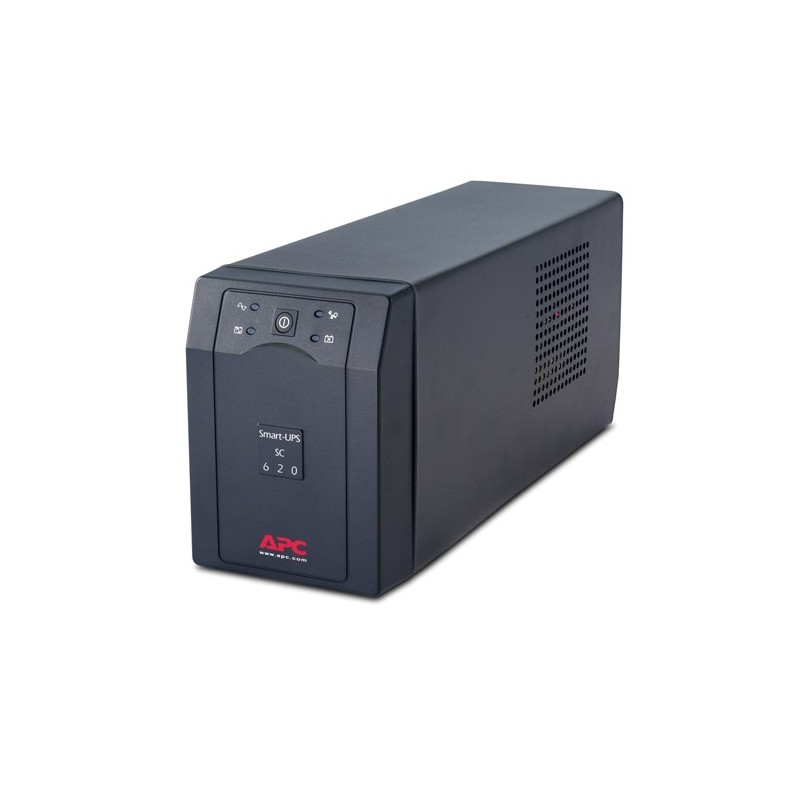

APC SC620I Smart-UPS SC 620VA 230V
  • APC SC620I Smart-UPS SC 620VA 230V
  • APC SC620I Smart-UPS SC 620VA 230V

Please Note, this product is not for consumer use in the European Union.

APC Smart-UPS SC is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Included PowerChute Business Edition management software allows you to configure safe system shutdowns and take advantage of advanced UPS management features like automated risk assessments and runtime capacity calculations. (All major operating systems supported). Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS, the Smart-UPS SC is the UPS to start your business with.
AC outlet typesC13 coupler
AC outlets quantity4 AC outlet(s)
Battery capacity132 VAh
Battery recharge time5.5 h
Battery replacement alarmsLED
Battery technologySealed Lead Acid (VRLA)
Battery typeMaintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Cables includedRS-232
CertificationREACH, PEP, EOLI
Colour of productGrey
Depth375 mm
Dimensions (WxDxH)119 x 368 x 168 mm
Efficiency97.4 %
Form factorTower
Height168 mm
Input connection typeIEC-320-C14 inlet
InterfaceDB-9 RS-232
LED indicatorsYes
Noise level45 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connectionsIEC 320 C13 IEC 320 C13 IEC Jumpers
Output power390 W
Output power capacity (VA)620 VA
Package dimensions (WxDxH)262 x 508 x 318 mm
Package height318 mm
Package weight13180 g
Package width262 mm
Power supply input frequency50/60 Hz
Quantity per pallet12 pc(s)
Replacement battery cartridgeRBC4
RoHS complianceYes
Serial ports quantity1
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating320 J
Surge protection featuresDigital Subscriber Line (DSL),Fax,Modem,Network
Typical backup time at full load5.5 min
Typical backup time at half load15.8 min
Weight12270 g
Width119 mm
