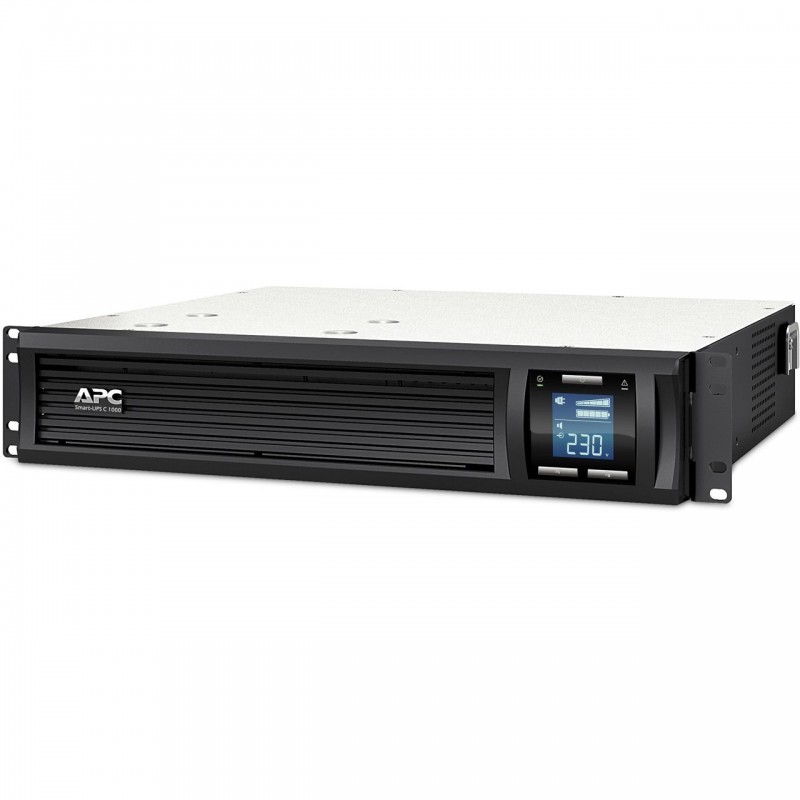

APC SMC1000I-2U Smart-UPS C 1000VA 2U Rack mountable LCD 230V

More Info
Details
Spec Sheet

Please Note, this product is not for consumer use in the European Union.

APC Smart-UPS,600 Watts /1000 VA,Input 230V /Output 230V, Interface Port USB, Rack Height 2 U

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, USB cable

Standard Lead Time: Usually Ships within 2 Weeks

AC outlet types	C13 coupler
AC outlets quantity	4 AC outlet(s)
Battery capacity	170 VAh
Battery recharge time	3 h
Battery technology	Sealed Lead Acid (VRLA)
Cable length	2.44 m
Cables included	USB cable
Certification	REACH, C-tick, CE, GOST, UL 1778, VDE
Colour of product	Black
Depth	406 mm
Display	LCD
Energy Star certified	Yes
Form factor	Rackmount
Height	89 mm
Hot-swap battery	Yes
Input operation voltage (max)	287 V
Input operation voltage (min)	180 V
Noise level	42 dB
Nominal input voltage	230 V
Nominal output voltage	230 V
Non-operating altitude	0 - 15000 m
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 95 %
Operating relative humidity range	0 - 95 %
Operating temperature (T-T)	0 - 40 °C
Operating temperature range (T-T)	0 - 40 °C
Output operation voltage (max)	120 V
Output operation voltage (min)	120 V
Output power	600 W
Output power capacity (VA)	1000 VA
Package dimensions (WxDxH)	546 x 584 x 241 mm
Package height	241 mm
Package weight	22330 g
Package width	546 mm
Power supply input frequency	50/60 Hz
Quantity per pallet	16 pc(s)
Quick installation guide	Yes
Rack capacity	2U
Rack mounting	Yes
Replacement battery cartridge	APCRBC124
RoHS compliance	Yes
Storage relative humidity (H-H)	0 - 95 %
Storage relative humidity range	0 - 95 %
Storage temperature (T-T)	-15 - 45 °C
Storage temperature range (T-T)	-15 - 45 °C
Surge energy rating	459 J
Typical backup time at full load	6 min
Typical backup time at half load	18 min
USB port	Yes
Waveform	Sine
Weight	20520 g
Width	432 mm

smc1000i-2u.pdf

Download (749.1k)
