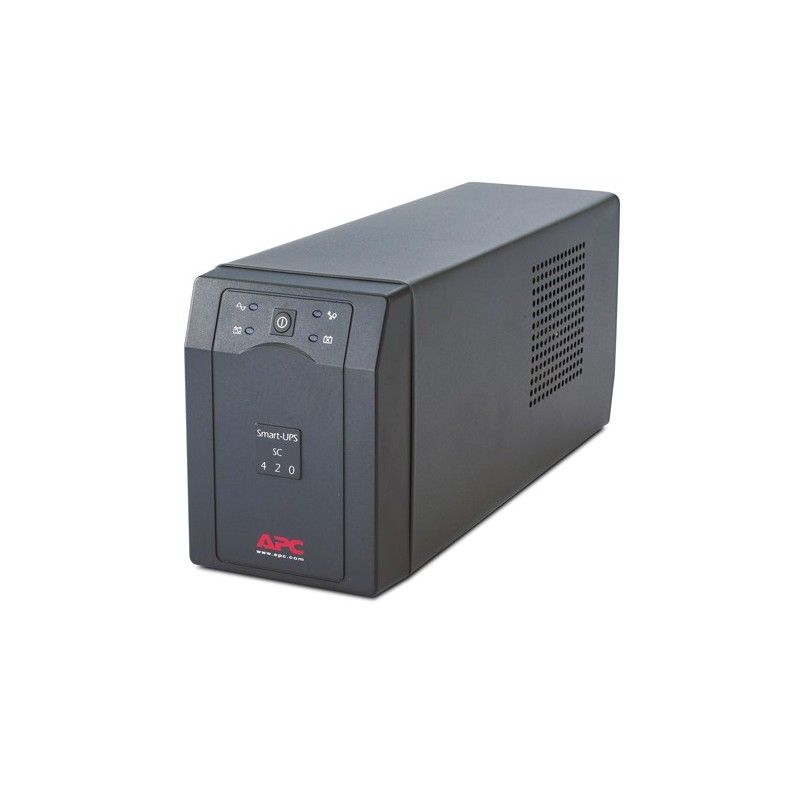

APC SC420I Smart-UPS SC 420VA 230V
  • APC SC420I Smart-UPS SC 420VA 230V
  • APC SC420I Smart-UPS SC 420VA 230V

Please Note, this product is not for consumer use in the European Union.

The economical UPS to start your business

APC Smart-UPS SC is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Included PowerChute Business Edition management software allows you to configure safe system shutdowns and take advantage of advanced UPS management features like automated risk assessments and runtime capacity calculations. (All major operating systems supported). Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS, the Smart-UPS SC is the UPS to start your business with.
AC outlet typesC13 coupler
AC outlets quantity4 AC outlet(s)
Battery capacity84 VAh
Battery recharge time3 h
Battery replacement alarmsLED
Battery technologySealed Lead Acid (VRLA)
Cables includedRS-232
CertificationREACH, PEP, EOLI
Colour of productGrey
Depth368 mm
Dimensions (WxDxH)119 x 368 x 168 mm
Efficiency96.5 %
Filtering0.7% IEEE/UL 1449
Form factorTower
Height168 mm
Hot-swap batteryYes
I/O portsCE, EN 50091-1, EN 50091-2, GOST, IEC 60950, IRAM, PCBC, VCCI, VDE
Input connection typeIEC-320 C14
InterfaceDB-9 RS-232
LED indicatorsYes
ManualYes
Noise level45 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output power260 W
Output power capacity (VA)420 VA
Output voltage note47-53Hz (50Hz), 57-63Hz (60Hz)
Package height318 mm
Package weight10230 g
Package width262 mm
Power supply input frequency50/60 Hz
Quantity per pallet12 pc(s)
Replacement battery cartridgeRBC2
RoHS complianceYes
Serial ports quantity1
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating320 J
Surge protection featuresDigital Subscriber Line (DSL),Fax,Modem,Network
Typical backup time at full load5.5 min
Typical backup time at half load13.6 min
Weight9090 g
Width119 mm
