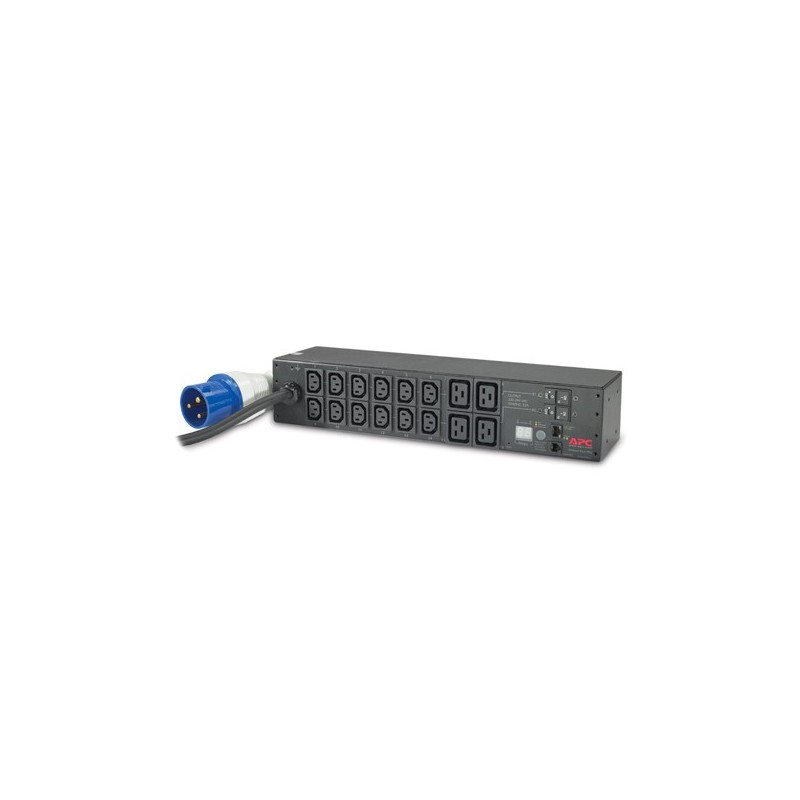

APC AP7822 Metered Rack PDU

RACK PDU, METERED, 2U, 32A, 230V, (12) C13S & (4) C19

Reference: AP7822

Stock Due 2017-03-30

APC Metered Rack PDU , Input: 230V , Input Connections: IEC 309 32A 2P+E , Cord Length: 12 feet ( 3.66 meters ) , Output: ... Read More

Need a custom made cabinet? we have it covered

Condition: New product

Free Next Day Delivery - on all orders over £100

More info
Details

APC Metered Rack PDU , Input: 230V , Input Connections: IEC 309 32A 2P+E , Cord Length: 12 feet ( 3.66 meters ) , Output: 200V , Output Connections: IEC 320 C13,IEC 320 C19

Includes: Cord retention bracket(s), Installation guide, Rack Mounting brackets, User Manual

Cable length	3.66 m
Certification	C-tick, CCC, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Colour of product	Black
Dimensions (WxDxH)	444 x 112 x 88 mm
Input connection type	IEC 309 32A 2P+E
Input frequency	50 - 60 Hz
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
Nominal input voltage	230 V
Operating relative humidity range	5 - 95 %
Operating temperature range (T-T)	-5 - 45 °C
Output connections	12xIEC 320 C13 4xIEC 320 C19
Package dimensions (WxDxH)	508 x 368 x 140 mm
Source data-sheet	Icecat.biz
Storage relative humidity range	5 - 95 %
Storage temperature range (T-T)	-25 - 65 °C
EAN	0731304246619
Manufacturer	APC
