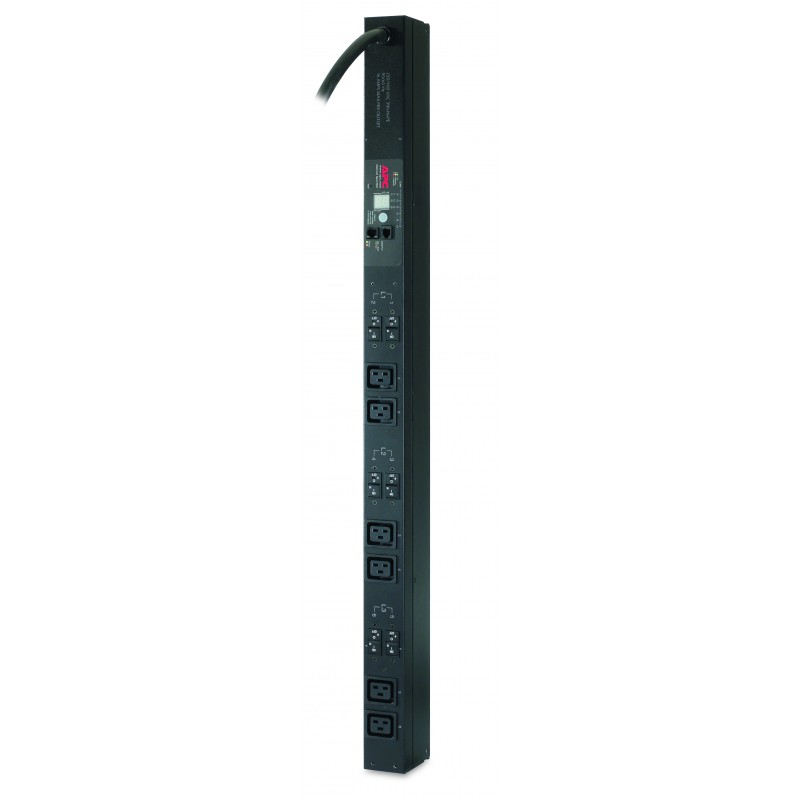

APC AP7855A Metered Rack PDU

Rack PDU, Metered, Zero U, 22kW, 400V, (6) C19

More details

AP7855A

Stock Due 2017-04-26

APC Metered Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 32A 3P+N+PE , Cord Length: 6 feet ( 1.83 meters ) , ... Read More

Need a custom made cabinet? we have it covered

New product

£13,006.95

£10,839.13 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

APC Metered Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 32A 3P+N+PE , Cord Length: 6 feet ( 1.83 meters ) , Output: 230V , Output Connections: IEC 320 C19

Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, RS-232 configuration cable.

-Flash Upgradeable.
-High Power Density.
-Information Displays.
-Network Management.
-Remote Current Monitoring.
-Toolless mounting capabilities.
-Vertical Mounting Capabilities.

Cable length1.83 m
CertificationCE,EN 55022 A,EN 55024, EN 61000-3-2,EN 61000-3-3,GOST,VDE
Colour of productBlack
Dimensions (WxDxH)56 x 89 x 927 mm
Input connection typeIEC 309 3P+N+PE
Input frequency47 - 63 Hz
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Nominal output voltage230 V
Operating relative humidity range5 - 95 %
Operating temperature range (T-T)-25 - 65 °C
Output connections6 x IEC 320 C19
Package dimensions (WxDxH)298 x 83 x 1067 mm
Package weight10000 g
Source data-sheetIcecat.biz
Storage relative humidity range5 - 95 %
Storage temperature range (T-T)-5 - 60 °C
Weight8180 g
EAN0731304251248
ManufacturerAPC
