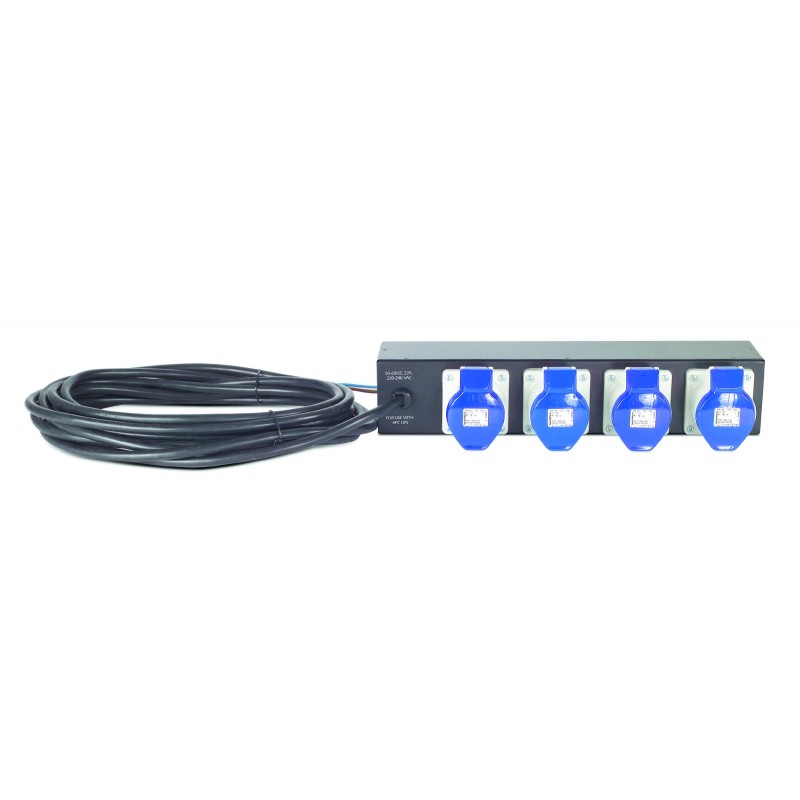

APC Basic Rack PDU Extender AP7586
  • APC Basic Rack PDU Extender AP7586
  • APC Basic Rack PDU Extender AP7586
  • APC Basic Rack PDU Extender AP7586
The most mounting options in the market.

APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.
Cable length 8.53 m
Colour of product Black
Dimensions (WxDxH) 437 x 89 x 89 mm
I/O ports Hard Wire 3-wire
(4) IEC 309
Input connection type Hard Wire 3-wire
Input frequency 50 - 60 Hz
Maximum input current per phase 32 A
Maximum total current draw per phase 32 A
Nominal input voltage 230 V
Nominal output voltage 230 V
Operating relative humidity (H-H) 0 - 45 %
Operating relative humidity range 0 - 45 %
Operating temperature (T-T) 0 - 45 °C
Operating temperature range (T-T) 0 - 45 °C
Output connections (4) IEC 309
Output voltage 230 V
Package dimensions (WxDxH) 521 x 521 x 152 mm
Package weight 5000 g
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 0 - 95 %
Storage relative humidity range 0 - 95 %
Storage temperature (T-T) -25 - 65 °C
Storage temperature range (T-T) -25 - 65 °C
Weight 4090 g

Specific References

EAN13
0731304224198

APC AP7586 Basic Rack PDU Extender

RACK PDU BASIC 2U 32A 230V (4) IEC 309-32

Out of Stock
£694.69
Tax excluded
Reference: AP7586
Quantity
