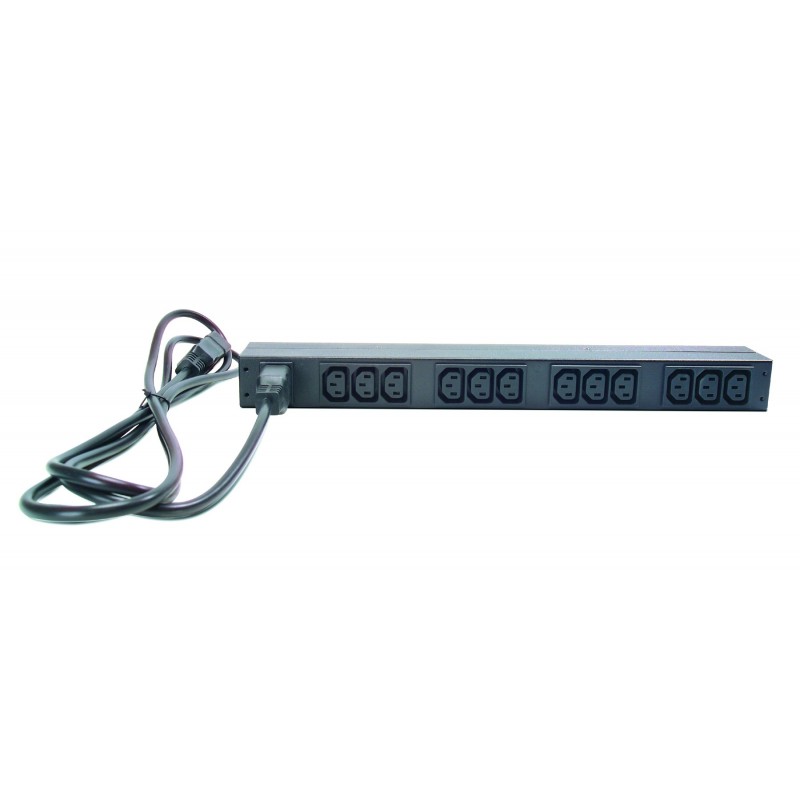

APC Basic Rack PDU AP9565
  • APC Basic Rack PDU AP9565
  • APC Basic Rack PDU AP9565
  • APC Basic Rack PDU AP9565
  • APC Basic Rack PDU AP9565
  • APC Basic Rack PDU AP9565
  • APC Basic Rack PDU AP9565
  • APC Basic Rack PDU AP9565
APC Basic Rack PDU , Input: 208V, 230V , Input Connections: IEC-320 C20 , Cord Length: 8.2 feet ( 2.5 meters ) , Output: 208V, 230V , Output Connections: IEC 320 C13.



Includes: Installation guide, Rack Mounting brackets.
Cable length2.5 m
CertificationcUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Colour of productBlack
Dimensions (WxDxH)447 x 57.2 x 44.5 mm
Input connection typeIEC-320 C20
Input frequency50 - 60 Hz
Load capacity3680 VA
Maximum input current per phase16 A
Nominal input voltage208 - 230 V
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 45 °C
Operating temperature range (T-T)0 - 45 °C
Output connections(12) IEC 320 C13
Package dimensions (WxDxH)464 x 229 x 70 mm
Package weight3640 g
Rack mountingYes
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight2050 g
