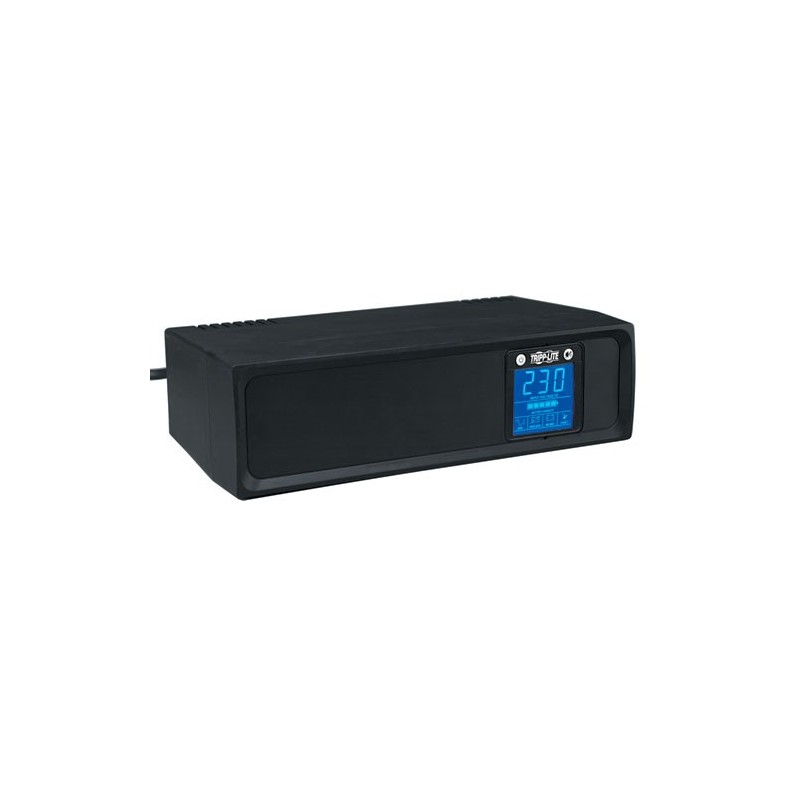

Tripp-Lite Smart LCD 1000VA Tower Line-Interactive 230V UPS

Smart LCD 1000VA Tower Line-Interactive 230V UPS with LCD display and USB port

More details

SMX1000LCD

Out of Stock

1000VA / 1kVA tower 230V line interactive UPS with LCD display Corrects brownouts as low as 171V without using battery ... Read More

Browse our range of high quality PDUs

New product

£214.31

£178.59 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

  • 1000VA / 1kVA tower 230V line interactive UPS with LCD display
  • Corrects brownouts as low as 171V without using battery power
  • LCD screen reports input voltage, battery charge and UPS status
  • USB port, TEL/DSL protection
  • C14 input and 6 C13 outlets



Tripp Lite's SMX1000LCD Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs for up to 60 min. or individual VCR/DVR component for as long as 3 hours during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 171V back to usable levels without consuming battery power. Offers complete power protection in an attractive black tower configuration. Includes 3 battery-supported outlets, plus 3 additional surge suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown without data loss in case of extended power failure; USB cable included. PowerAlert Software available via free download from www.tripplite.com. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in single-line RJ-11 phone suppression jacks protect modem, satellite receiver or other peripherals with a standard dialup/DSL phone connection. Built-in audible alarm and large LCD front panel voltage display indicate line power status, battery power status, battery low/replace status and voltage boost operation. 1000VA/500W power-handling ability supports entry-level PCs, home entertainment systems, network workstations, audio/video components. Offers 3 min. battery runtime with a full load of 1000VA/500W and 11 min. with a half load of 500VA/250W

Features:

  • LCD Display indicates input voltage, battery capacity and a variety of operating conditions. Display is rotatable for easy viewing with UPS in either vertical or horizontal position
  • SMX1000LCD Digital Uninterruptible Power Supply offers voltage regulation, surge suppression and long-lasting battery support during blackouts
  • Supports entry-level PCs up to 60 min. or single VCR/DVR components for up to 3 hours during blackouts
  • Regulates brownouts as low as 171V back to usable levels without consuming battery power
  • 6 AC outlets: 3 UPS battery-supported/surge suppression, 3 surge suppression only
  • USB port and cable enable unattended shutdown in the case of extended power failure
  • HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
  • PowerAlert Software available via free download from www.tripplite.com
  • Single-line phone suppression protects standard dialup/DSL phone connection
  • 1000VA/500W power handling ability supports a variety of sensitive computer, home theater and other equipment
  • 3 min. full load runtime (1000VA/500W); 11 min. half-load runtime (500VA/250W)
  • Includes two C13-to-C14 output power cables
  • C14 inlet supports a wide variety of user supplied site or country specific high voltage international plugsets
  • Cabinet adapts to tower and 2U rackmount shelf formats. Rackmount format requires optional shelf, available separately
  • Attractive full-color retail packaging

Package Includes

  • SMX1000LCD Digital UPS System
  • 1 USB cable, 1 phone (RJ11) cable and 2 C13-to-C14 cables
  • Manual with warranty information



Cable length1.8 m
CertificationCE (IEC 62040), GOST, SASO, CE Class B (Emissions), RoHS compliant
Colour of productBlack
Dimensions (WxDxH)89 x 165 x 305 mm
Input connection typeIEC-C14
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating relative humidity (non-condensing)0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output connections6 x IEC-C13
Output power500 W
Output power capacity (VA)1000 VA
Package dimensions (WxDxH)394 x 279 x 165 mm
Power supply input frequency50/60 Hz
Source data-sheetIcecat.biz
Storage temperature range (T-T)-15 - 50 °C
Surge energy rating480 J
Typical backup time at full load3 min
Typical backup time at half load11 min
Weight6600 g
EAN0037332125927
ManufacturerTripp-Lite
