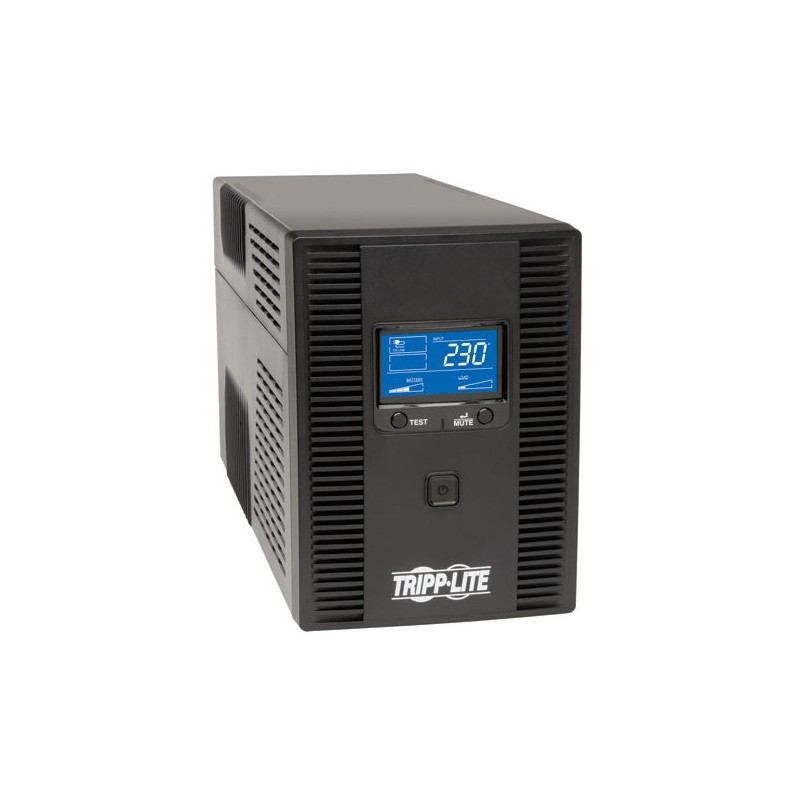

Tripp Lite's SMX1500LCDT Line-Interactive Tower UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs and other connected equipment during power failures, preventing data loss and downtime. Automatic Voltage Regulation (AVR) circuits continuously regulate brownouts and overvoltages from 170V to 280V back to usable levels, all while maintaining a full battery charge. Offers complete power protection in an attractive all-black cabinet design. Includes 8 built-in outlets, 6 with full battery backup and surge suppression for vital system components and an additional set of 2 outlets with surge-suppression only for accessories not requiring battery support. Built-in USB port and included cable enables optional unattended system shutdown without data loss in case of extended power failure. PowerAlert software is available via free download from www.tripplite.com. HID-compliant USB interface also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in surge dataline surge suppression jacks protect equipment with single-line dialup/DSL or network Ethernet connection. Built-in audible alarm and large LCD front panel display offers easy to read icon-based status indicators and detailed numeric data regarding input voltage, output voltage, frequency, load percentage, load watts, battery voltage and runtime in minutes. 1500VA/900W power-handling capacity supports entry-level PCs, home entertainment systems, network workstations and audio/video components.
AC outlet types |
C13 coupler |
Battery voltage |
12 V |
Cable length |
1.8 m |
Colour of product |
Black |
Depth |
146 mm |
Display |
LCD |
Efficiency |
95 % |
Ethernet LAN (RJ-45) ports quantity |
2 |
Fan |
Yes |
Height |
394 mm |
Hot-swap battery |
Yes |
Input operation voltage (max) |
230 V |
Input operation voltage (min) |
230 V |
LED indicators |
Yes |
Maximum current |
10 A |
Output operation voltage (max) |
230 V |
Output operation voltage (min) |
230 V |
Output power |
900 W |
Output power capacity (VA) |
1500 VA |
Power plug |
C14 coupler |
Power supply input frequency |
50/60 Hz |
Surge energy rating |
455 J |
Typical backup time at half load |
10 min |
Weight |
11.2 kg |
Width |
203 mm |
Specific References
- EAN13
- 0037332177445
