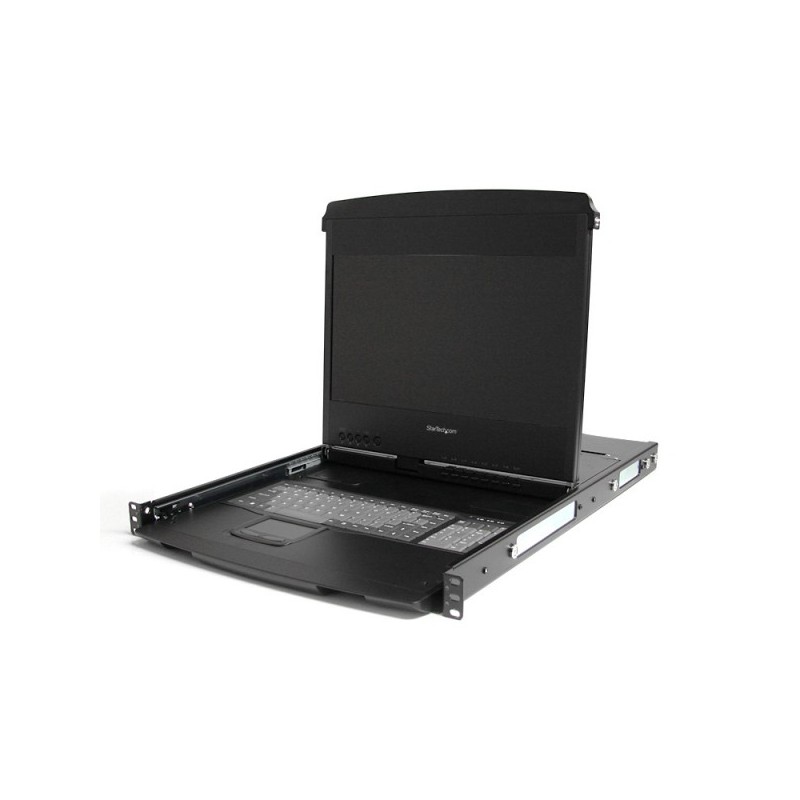

1U 17” HD 1080p Dual Rail Rackmount Widescreen LCD Console

1U 43.18 cm (17 ") High Resolution Dual Rail Rack Mount LCD Console Drawer

More details


Out of Stock

The RACKCOND1701 1U 17-inch Rack Mount LCD Console Drawer offers a high resolution LCD display, full keyboard and touchpad ... Read More

Browse our range of high quality PDUs

New product


£829.52 Ex VAT.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

The RACKCOND1701 1U 17-inch Rack Mount LCD Console Drawer offers a high resolution LCD display, full keyboard and touchpad console, allowing you to centrally manage and monitor your servers and KVM switches using a space-saving 1U of rack space.

The LCD Console drawer features an innovative dual-rail system that allows the display to slide independently from the keyboard/touchpad tray, giving system administrators the ability to use the device as a monitoring station while the keyboard is neatly tucked away inside the rack. Unlike other 17-inch LCD Rack Consoles, this unit supports VGA resolutions up to 1920x1080 for crystal clear high definition display, while an LED Backlight reduces power consumption by up to 50%.

The Rack Console features an integrated single port KVM module enabling direct connections to a single system or to KVM switches in a cascaded configuration for centralized control of multiple systems.

Backed by a 3-year warranty and free lifetime technical support.

The Advantage

- Create a central monitoring point within your rack, through the dual-rail design

- Maximize screen real estate with a Full HD 1080p display

- Increase longevity, with a replaceable keyboard and touchpad
AC adapter includedYes
AC adapter input voltage100 - 240 V
CertificationCE, FCC, UL
Colour of productBlack
Contrast ratio (typical)500:1
DC-in jackYes
Depth480.8 mm
Dimensions (WxDxH)680 x 480.8 x 43.8 mm
Display brightness300 cd/m²
Display diagonal17 "
Display resolution1920 x 1080 pixels
Height43.8 mm
I/O ports1 x DB15 (VGA), 1 x USB B, 2 x PS/2
Keyboard port typeUSB, PS/2
Mean time between failures (MTBF)50000 h
Mouse port typeUSB, PS/2
Number of computers controlled1
Operating relative humidity (H-H)0 - 80 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Package dimensions (WxDxH)543 x 812 x 203 mm
Package weight22900 g
Power consumption (typical)16 W
Power supply input voltage110 - 240 V
Rack capacity1U
Response time8 ms
RoHS complianceYes
Storage temperature (T-T)-20 - 60 °C
Storage temperature range (T-T)-20 - 80 °C
Video port typeVGA
Viewing angle, horizontal140 °
Viewing angle, vertical120 °
Weight15600 g
Width680 mm
