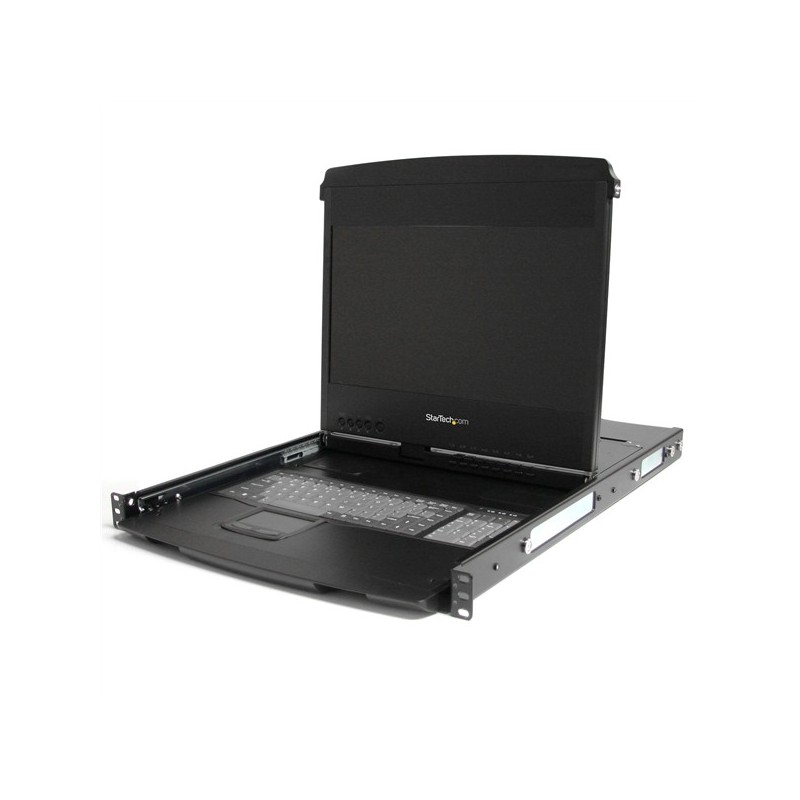

The RACKCOND1701 1U 17-inch Rack Mount LCD Console Drawer offers a high resolution LCD display, full keyboard and touchpad console, allowing you to centrally manage and monitor your servers and KVM switches using a space-saving 1U of rack space.
The LCD Console drawer features an innovative dual-rail system that allows the display to slide independently from the keyboard/touchpad tray, giving system administrators the ability to use the device as a monitoring station while the keyboard is neatly tucked away inside the rack. Unlike other 17-inch LCD Rack Consoles, this unit supports VGA resolutions up to 1920x1080 for crystal clear high definition display, while an LED Backlight reduces power consumption by up to 50%.
The Rack Console features an integrated single port KVM module enabling direct connections to a single system or to KVM switches in a cascaded configuration for centralized control of multiple systems.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Create a central monitoring point within your rack, through the dual-rail design
- Maximize screen real estate with a Full HD 1080p display
- Increase longevity, with a replaceable keyboard and touchpad
The LCD Console drawer features an innovative dual-rail system that allows the display to slide independently from the keyboard/touchpad tray, giving system administrators the ability to use the device as a monitoring station while the keyboard is neatly tucked away inside the rack. Unlike other 17-inch LCD Rack Consoles, this unit supports VGA resolutions up to 1920x1080 for crystal clear high definition display, while an LED Backlight reduces power consumption by up to 50%.
The Rack Console features an integrated single port KVM module enabling direct connections to a single system or to KVM switches in a cascaded configuration for centralized control of multiple systems.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Create a central monitoring point within your rack, through the dual-rail design
- Maximize screen real estate with a Full HD 1080p display
- Increase longevity, with a replaceable keyboard and touchpad
| AC adapter included | Yes |
| AC adapter input voltage | 100 - 240 V |
| Certification | CE, FCC, UL |
| Colour of product | Black |
| Contrast ratio (typical) | 500:1 |
| DC-in jack | Yes |
| Depth | 480.8 mm |
| Dimensions (WxDxH) | 680 x 480.8 x 43.8 mm |
| Display | TFT |
| Display brightness | 300 cd/m² |
| Display diagonal | 17 " |
| Display resolution | 1920 x 1080 pixels |
| Height | 43.8 mm |
| I/O ports | 1 x DB15 (VGA), 1 x USB B, 2 x PS/2 |
| Interface | USB |
| Keyboard port type | USB, PS/2 |
| Manual | Yes |
| Material | Steel |
| Mean time between failures (MTBF) | 50000 h |
| Mouse port type | USB, PS/2 |
| Number of computers controlled | 1 |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Package dimensions (WxDxH) | 543 x 812 x 203 mm |
| Package weight | 22900 g |
| Power consumption (typical) | 16 W |
| Power supply input voltage | 110 - 240 V |
| Rack capacity | 1U |
| Response time | 8 ms |
| RoHS compliance | Yes |
| Source data-sheet | . |
| Storage temperature (T-T) | -20 - 60 °C |
| Video port type | VGA |
| Viewing angle, horizontal | 140 ° |
| Viewing angle, vertical | 120 ° |
| Weight | 15600 g |
| Width | 680 mm |
Specific References
- EAN13
- 0065030832533
StarTech 1U 17” HD 1080p Dual Rail Rackmount Widescreen LCD Console
Monitor or control server equipment from a central, KVM-integrated console, with the convenience of a dual-rail console drawer design
£995.43
£829.52 Ex. VAT
Monitor or control server equipment from a central, KVM-integrated console, with the convenience of a dual-rail console drawer design
