APC Rack-mount Transfer Switches , Input: 230V , Input Connections: IEC 309 32A 2P+E , Cord Length: 8 feet ( 2.44 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19.

Includes: Documentation CD, Rack Mounting brackets, RS-232 configuration cable, Warranty card.



- Local Current Monitoring Display

The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

- Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

- Remote Current Monitoring



Agility

- Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.



Availability

- Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

- Dual Input Power Sources

Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.

- Information Displays

Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.
Cable length2.44 m
CertificationEN 55022 Class A, FCC Part 15 Class A RoHS 7b
Colour of productBlack
Dimensions (WxDxH)432 x 236 x 88 mm
Input connection typeIEC 309 32A 2P+E
Input frequency50/60 Hz
Maximum current32 A
Maximum input current per phase32 A
Maximum total current draw per phase32 A
MountingHorizontal
Nominal input voltage230 V
Nominal output voltage230 V
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Operating temperature range (T-T)-5 - 45 °C
Output connections16 x IEC 320 C13 2 x IEC 320 C19
Package dimensions (WxDxH)613 x 356 x 184 mm
Package weight9360 g
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight6860 g

You might also like

  • 700mm 1u Universal Adjustable Depth Rack Shelf
    700mm 1u Universal Adjustable Depth Rack...
  • 300mm 1u Cantilever Shelf
    300mm 1u Cantilever Shelf
  • 190mm 1u Cantilever Shelf
    190mm 1u Cantilever Shelf
  • 300mm 2u Cantilever Shelf
    300mm 2u Cantilever Shelf

Similar products

  • APC AP7721 Rack ATS
    APC AP7721 Rack ATS
  • APC AP7768 Bracket kit, Rear rails, Rack ATS
    APC AP7768 Bracket kit, Rear rails, Rack ATS
  • APC AP7769 Cord Retention Bracket for Rack ATS
    APC AP7769 Cord Retention Bracket for Rack...
  • APC AP7723 Rack ATS
    APC AP7723 Rack ATS

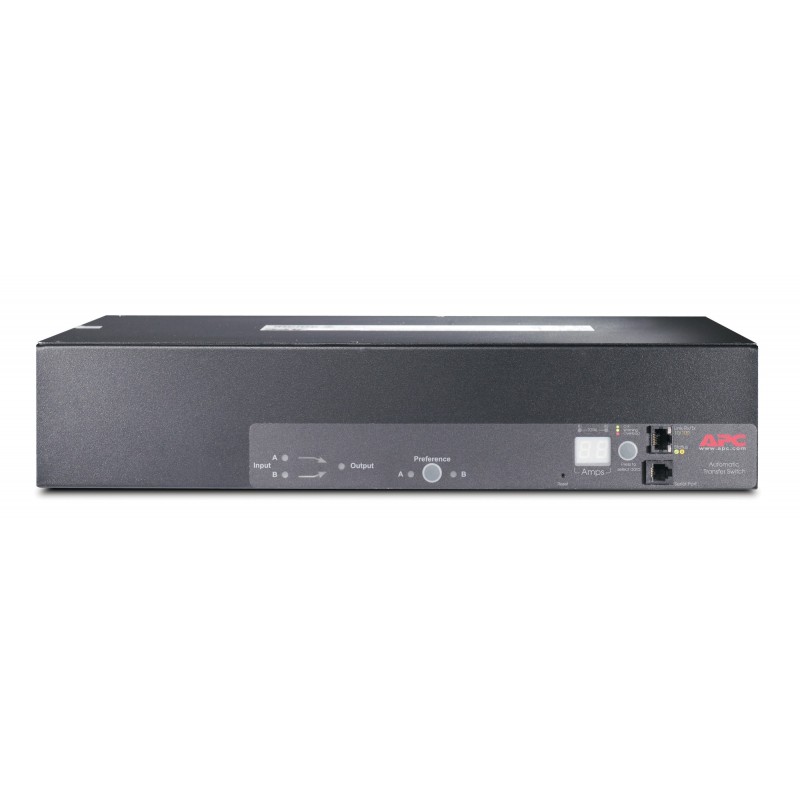

APC AP7724 Rack ATS

Rack ATS, 2U 230V, 32A, IEC309-32A In, (16)C13, (2)C19 Out

AP7724

Out of Stock

£8,617.68
£7,181.40 Ex VAT.
