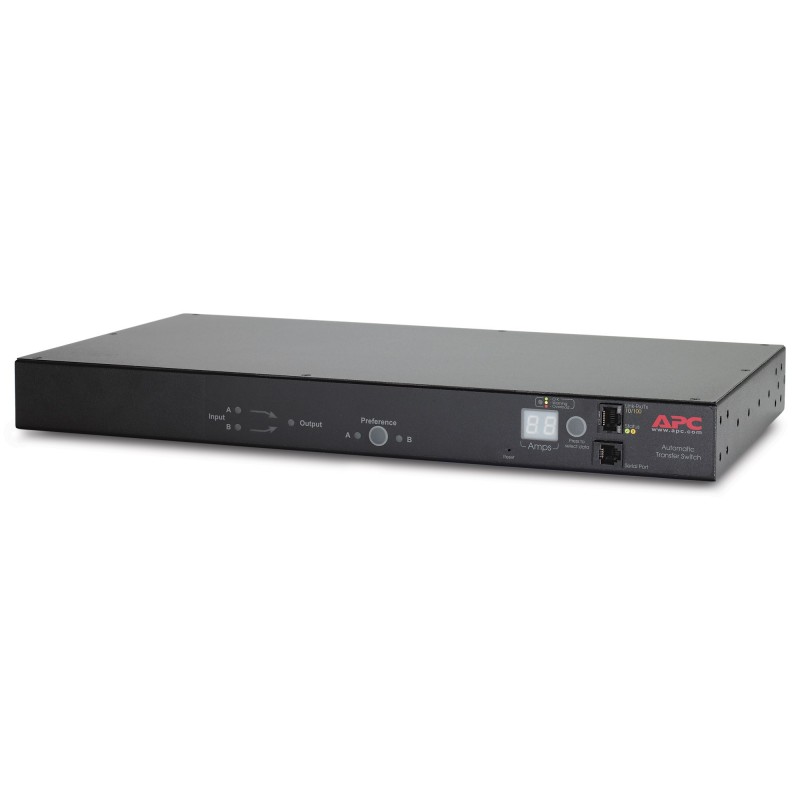

APC Rack ATS AP7723
  • APC Rack ATS AP7723
  • APC Rack ATS AP7723
  • APC Rack ATS AP7723
APC Rack Automatic Transfer Switch , Input: 230V , Input Connections: IEC-320 C20 , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19



Includes: Documentation CD, Rack Mounting brackets, RS-232 configuration cable, Warranty card.
CertificationEN 55022 Class A,FCC Part 15 Class A
Colour of productBlack
Dimensions (WxDxH)432 x 229 x 44 mm
Input connection typeIEC-320 C20
Input frequency47/63 Hz
Maximum input current per phase20 A
Maximum total current draw per phase16 A
Nominal input voltage230 V
Nominal output voltage230 V
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Operating temperature range (T-T)-5 - 45 °C
Output connections(8) IEC 320 C13, (1) IEC 320 C19
Package dimensions (WxDxH)600 x 349 x 114 mm
Package weight5700 g
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight3930 g
