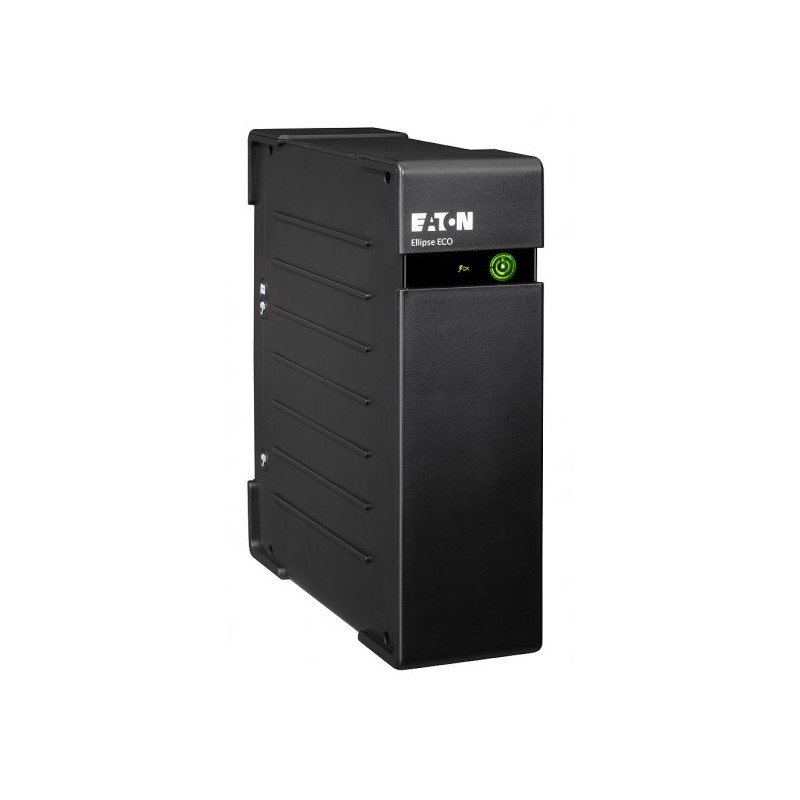

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.

AC outlet types	C13 coupler
AC outlets quantity	4 AC outlet(s)
Battery replacement alarms	Audible,LED
Battery technology	Sealed Lead Acid (VRLA)
Bundled software	Eaton Intelligent Power
Colour of product	Black
Compatible operating systems	Windows 7/Vista/XP Mac OS X Linux
Depth	235 mm
Ethernet LAN (RJ-45) ports	1
Ethernet LAN (RJ-45) ports quantity	1
Form factor	Rackmount
Height	263 mm
Hot-swap battery	Yes
Input connection type	IEC
Input operation voltage (max)	284 V
Input operation voltage (min)	161 V
LED indicators	Yes
Mac compatibility	Yes
Nominal input voltage	220 V
Nominal output voltage	220-240 V
Output operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output power	500 W
Output power capacity (VA)	800 VA
Power plug	C14 coupler
Power supply input frequency	50/60 Hz
Rack capacity	2U
Rack mounting	Yes
Safety	IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Source data-sheet	Icecat.biz
Surge protection features	Fax,Modem,Network,Telephone
Typical backup time at half load	11 min
USB 2.0 ports quantity	1
Weight	4100 g
Width	81 mm
