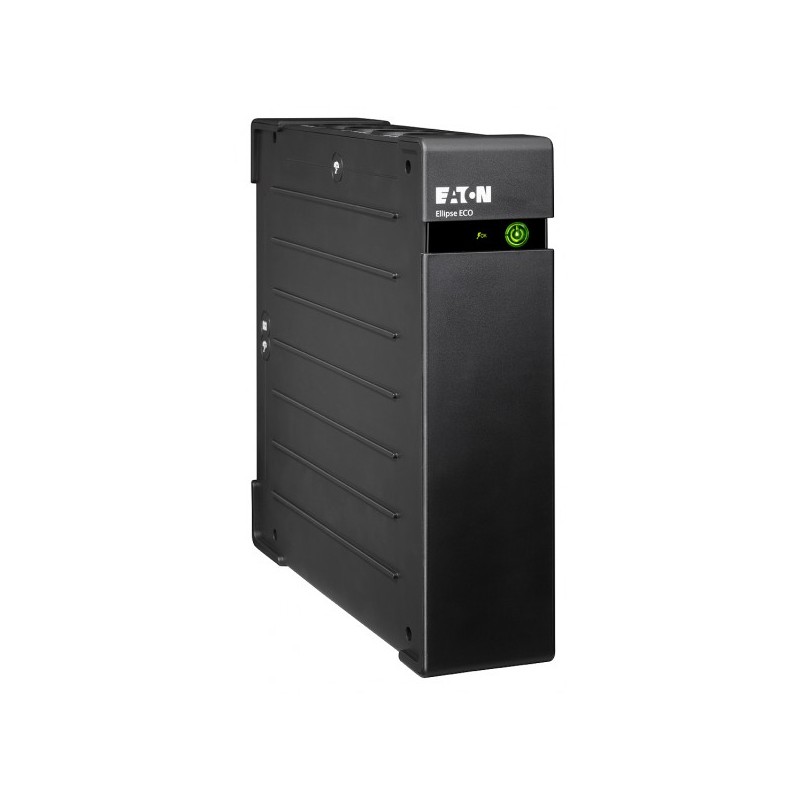

Eaton Ellipse ECO 1600 USB IEC

Ellipse ECO 1600 USB IEC

More details

EL1600USBIEC

In Stock

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with ... Read More

Need a custom made cabinet? we have it covered

New product

£299.69

£249.74 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
AC outlet typesC13 coupler
AC outlets quantity8 AC outlet(s)
Battery replacement alarmsAudible,LED
Battery technologySealed Lead Acid (VRLA)
Bundled softwareEaton Intelligent Power
Colour of productBlack
Compatible operating systemsWindows 7/Vista/XP Mac OS X Linux
Depth312 mm
Ethernet LAN (RJ-45) ports1
Ethernet LAN (RJ-45) ports quantity1
Form factorRackmount
Height305 mm
Hot-swap batteryYes
Input connection typeIEC
Input operation voltage (max)284 V
Input operation voltage (min)161 V
LED indicatorsYes
Mac compatibilityYes
Nominal input voltage230 V
Nominal output voltage220-240 V
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power1000 W
Output power capacity (VA)1600 VA
Power plugC14 coupler
Power supply input frequency50/60 Hz
Rack capacity2U
Rack mounting2U
SafetyIEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Source data-sheetIcecat.biz
Surge protection featuresFax,Modem,Network,Telephone
Typical backup time at half load11 min
USB 2.0 ports quantity1
Weight7800 g
Width81 mm
EAN3553340621635
ManufacturerEaton
