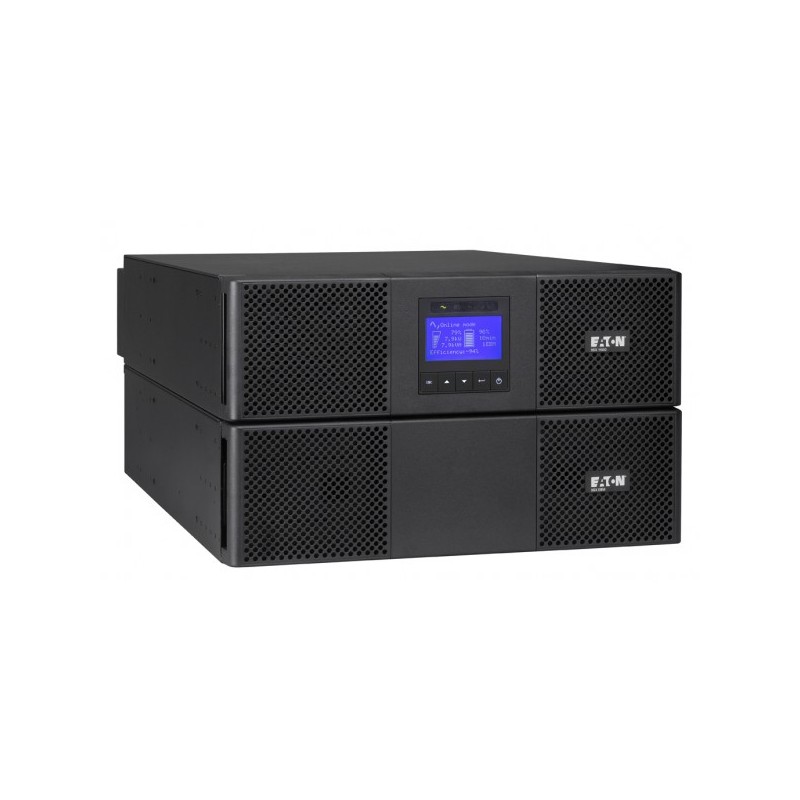

Eaton 9SX 11000 6u Rackmount/Tower

11 kVA, 10 kW, LCD, Terminal, USB, RS-232, 50 dB, 86 kg

More details

9SX11KiRT

Out of Stock

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, ... Read More

Need a custom made cabinet? we have it covered

New product

£4,628.92

£3,857.43 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.
AC outlet typesTerminal
Colour of productBlack
Crest factor3:1
Depth700 mm
DisplayLCD
Efficiency98 %
Energy Star certifiedYes
Form factorRackmount/Tower
Height440 mm
Input current THD5 %
Input operation voltage (max)276 V
Maximum current150 A
Noise level50 dB
Operating temperature range (T-T)0 - 40 °C
Output operation voltage (max)250 V
Output power10000 W
Output power capacity (VA)11000 VA
Power plugTerminal
Power supply input frequency40/70 Hz
Rack mounting6U
SafetyEN 62040-1, UL 1778, CSA 22.2
Typical backup time at half load9 min
Weight86 kg
Width260 mm
EAN0743172040237
ManufacturerEaton
