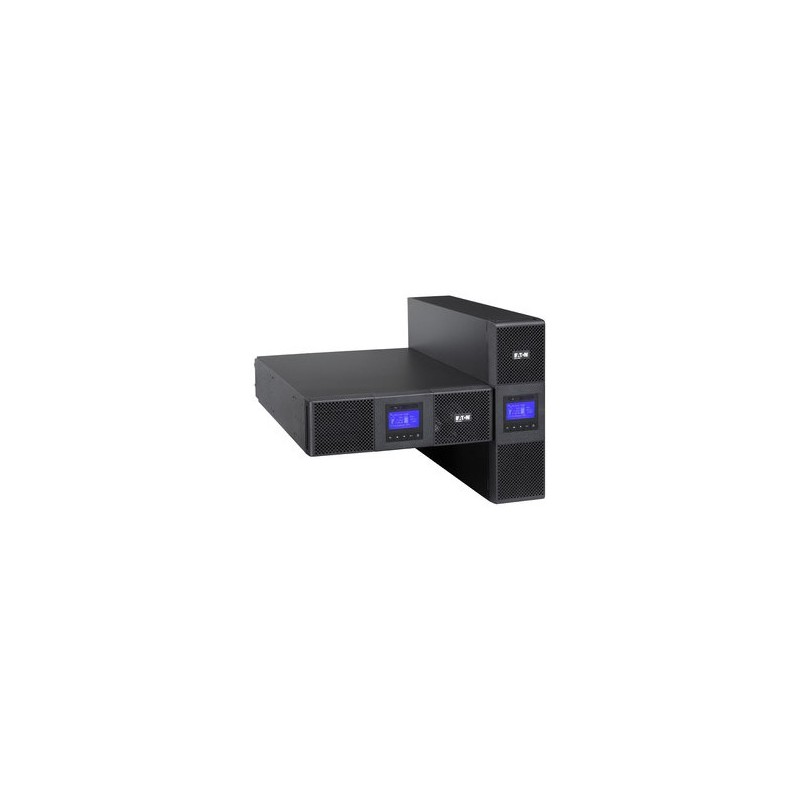

Eaton 9SX 5000i 3u Rackmount/Tower

5000VA, 4500W, 200 - 240V, 8 x IEC-320-C13, 2 x IEC-320-C19, 45dB, 48kg

More details

9SX5KIRT

In Stock

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, ... Read More

Need a custom made cabinet? we have it covered

New product

£2,589.79

£2,158.16 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity10 AC outlet(s)
CertificationIEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 CE, CB (TUV), UL
Colour of productBlack
Crest factor3:1
Depth685 mm
DisplayLCD
Efficiency98 %
Form factorRackmount/Tower
Height440 mm
Input current THD5 %
Input operation voltage (max)276 V
Input operation voltage (min)176 V
Noise level45 dB
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections8 x IEC-320-C13 & 2 x IEC-320-C19
Output operation voltage (max)240 V
Output operation voltage (min)200 V
Output power4500 W
Output power capacity (VA)5000 VA
Output voltage THD2 %
Power supply input frequency50/60 Hz
RS-232 ports1
SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
Source data-sheetIcecat.biz
USB 2.0 ports quantity1
Weight48000 g
Width130 mm
EAN0743172039347
ManufacturerEaton
