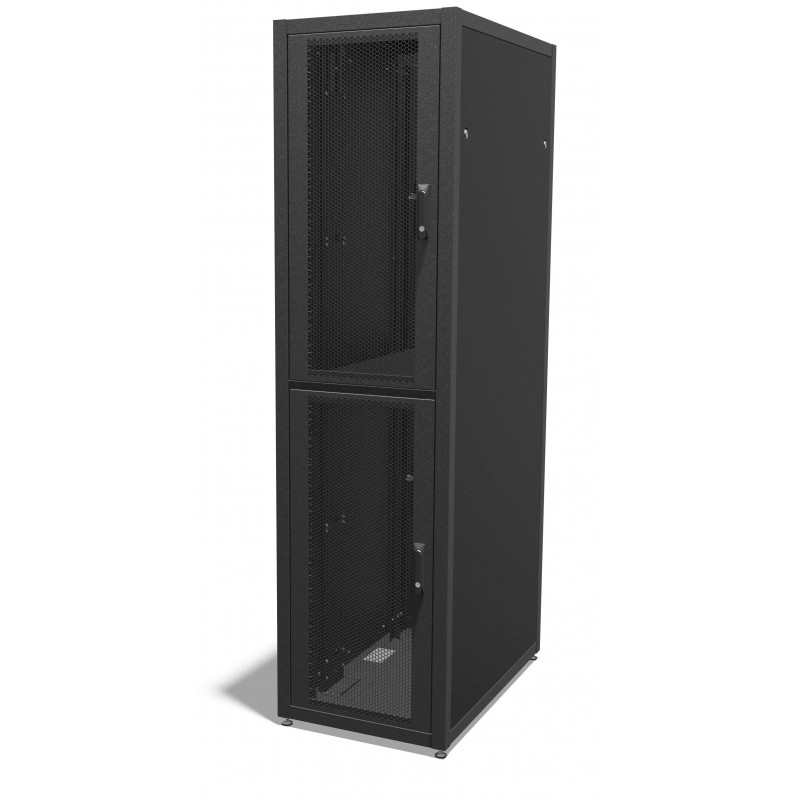

47u 800mm x 1000mm 2 Compartment CoLocation Server Rack
  • 47u 800mm x 1000mm 2 Compartment CoLocation Server Rack
  • 47u 800mm x 1000mm 2 Compartment CoLocation Server Rack
  • 47u 800mm x 1000mm 2 Compartment CoLocation Server Rack
  • 47u 800mm x 1000mm 2 Compartment CoLocation Server Rack
  • 47u 800mm x 1000mm 2 Compartment CoLocation Server Rack
  • 47u 800mm x 1000mm 2 Compartment CoLocation Server Rack
  • 47u 800mm x 1000mm 2 Compartment CoLocation Server Rack
  • 47u 800mm x 1000mm 2 Compartment CoLocation Server Rack

CCS CoLocation Server Racks provide a perfect solution for your Data Centre Rack & Cabinet requirements.

Each compartment is securely segregated and uniquely keyed for increased security, with cable entry top and bottom. The racks are load rated to 1000kg (evenly distributed)

Easy baying is possible with an optional baying kit, allowing these Co-Location Server Racks to be installed in high density Data Centre Environments.

Details:

Features:

  • Welded frame construction with 1000kgs weight loading
  • 2 x lockable solid steel side panels
  • 2 x pairs of adjustable 19" posts in each compartment
  • 1 x pair of mesh doors per compartment, each pair with it's own unique key number
  • Vented colo partition panel segregating each compartment
  • All cabinets have top & bottom cable access
  • Supplied with transit castors, screw jack feet & earthing kit
Cable EntryTop & Bottom
Depth1000mm
Front Door TypeVented Mesh
Internal Working Depth900mm
Mounting Profiles19" Adjustable Front & Rear
Side PanelsLockable/Removable
U Height47u
Width800mm

You might also like

  • IEC C14 Male - IEC C13 Female Power Extension/Jumper Lead
    IEC C14 Male - IEC C13 Female Power...
  • UK Socket / C16 Commando Plug Rack PDU
    UK Socket / C16 Commando Plug Rack PDU
  • UK Mains - IEC C13 Female Lead
    UK Mains - IEC C13 Female Lead
  • UK Socket / IEC C14 Plug Rack PDU
    UK Socket / IEC C14 Plug Rack PDU

Similar products

  • 42u 600mm x 1000mm 2 Compartment CoLocation Server Rack
    42u 600mm x 1000mm 2 Compartment...
  • 42u 600mm x 1200mm 2 Compartment CoLocation Server Rack
    42u 600mm x 1200mm 2 Compartment...
  • 42u 800mm x 1000mm 2 Compartment CoLocation Server Rack
    42u 800mm x 1000mm 2 Compartment...
  • 42u 800mm x 1200mm 2 Compartment CoLocation Server Rack
    42u 800mm x 1200mm 2 Compartment...
  • 47u 600mm x 1000mm 2 Compartment CoLocation Server Rack
    47u 600mm x 1000mm 2 Compartment...

47u 800mm x 1000mm 2 Compartment CoLocation Server Rack

2 Compartment 47u Co-Location Server Cabinet for Data Centres - Each Secure Compartment Provides 23u of Space

CL47-810-2

Made to Order, 10 day lead time

£2,153.34
£1,794.45 Ex VAT.
