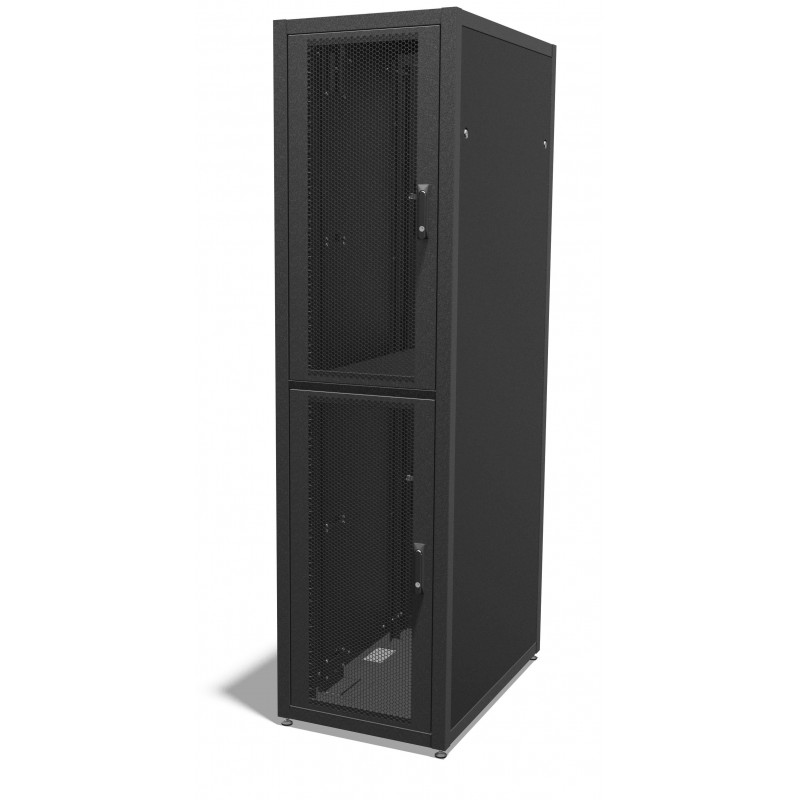

42u 600mm x 1000mm 2 Compartment CoLocation Server Rack
  • 42u 600mm x 1000mm 2 Compartment CoLocation Server Rack
  • 42u 600mm x 1000mm 2 Compartment CoLocation Server Rack
  • 42u 600mm x 1000mm 2 Compartment CoLocation Server Rack
  • 42u 600mm x 1000mm 2 Compartment CoLocation Server Rack
  • 42u 600mm x 1000mm 2 Compartment CoLocation Server Rack
  • 42u 600mm x 1000mm 2 Compartment CoLocation Server Rack
  • 42u 600mm x 1000mm 2 Compartment CoLocation Server Rack
  • 42u 600mm x 1000mm 2 Compartment CoLocation Server Rack

CCS CoLocation Server Racks provide a perfect solution for your Data Centre Rack & Cabinet requirements.

Each compartment is securely segregated and individually keyed for increased security, with cable entry top and bottom. The racks are load rated to 1000kg (evenly distributed)

Easy baying is possible with an optional baying kit, allowing these Co-Location Server Racks to be installed in high density Data Centre Environments.

Details:

Features:

  • Welded frame construction with 1000kgs weight loading
  • 2 x lockable solid steel side panels
  • 2 x pairs of adjustable 19" posts in each compartment
  • 1 x pair of mesh doors per compartment, each pair with it's own unique key number
  • Vented colo partition panel segregating each compartment
  • All cabinets have top & bottom cable access
  • Supplied with transit castors, screw jack feet & earthing kit
Cable EntryTop & Bottom
Depth1000mm
Front Door TypeVented Mesh
Internal Working Depth900mm
Mounting Profiles19" Adjustable Front & Rear
Side PanelsLockable/Removable
U Height43u
Width600mm
