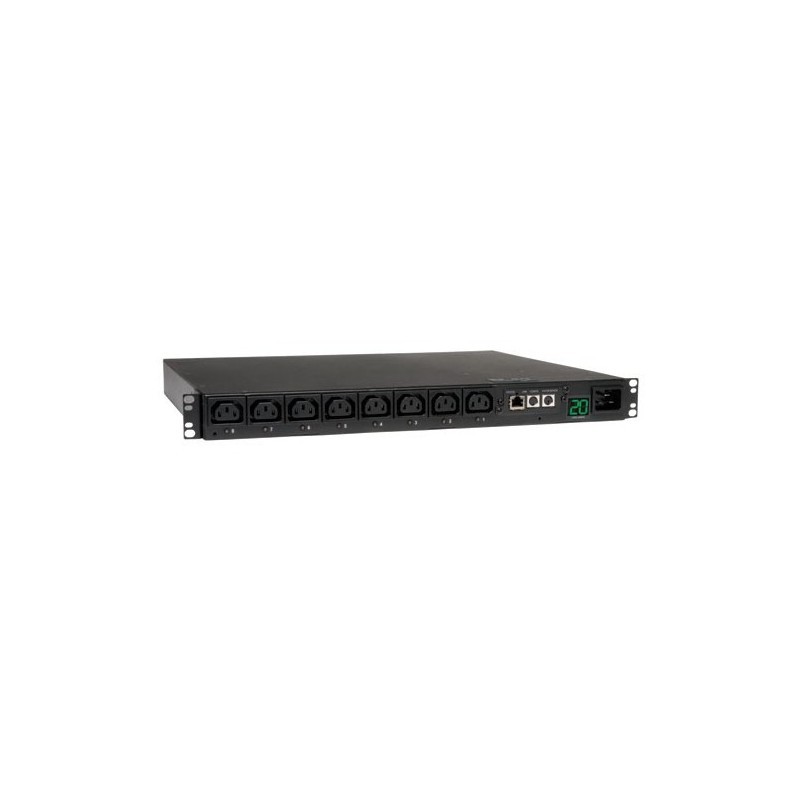

Tripp-Lite PDUMH20HVNET power distribution unit PDU
  • Tripp-Lite PDUMH20HVNET power distribution unit PDU
  • Tripp-Lite PDUMH20HVNET power distribution unit PDU
  • Tripp-Lite PDUMH20HVNET power distribution unit PDU
  • Tripp-Lite PDUMH20HVNET power distribution unit PDU
Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

● 16/20A 200/208/230/240V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 16A continuous)

● C20 inlet; 2.6m C20 power cable with L6-20P plug adapter

● 8 switched C13 outlets

● 1U horizontal rackmount form factor

● Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis

● Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets

● Network interface provides PDU control and data regarding input voltage, frequency and loading information

● Digital display reports load level information in amps

● Supports user-specified alarm notification thresholds

● In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors

● DHCP/Manual configuration support

● 10/100 Mbps auto-sensing

● Real-time clock backup maintains the time of day and date even if the PDU is unpowered

● Tiered access privileges allow an administrator and a guest to login via web browser

● Alert notifications via email or SNMP traps offer immediate event notification

● Firmware upgrade ability supports future product enhancements

● Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols

● Fully compatible with FREE PowerAlert Network Management System / NMS Software

● Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats

● Mounting ears are reversible for front or rear facing rackmount installation

● Included cord retention brackets

● Switched 16/20A 200-240V PDU, 1U Horizontal Rackmount format

● Reports voltage, frequency & loading information via ethernet interface

● Visual current meter, reversible housing

● C20 inlet; 2.6m C20 input cable with L6-20P adapter

● 8 C13 switched outlets with cord retention brackets

● Temperature, humidity and contact-closure monitoring options



Package Includes



● Rackmount PDU

● Rack mounting brackets
AC outlet typesC13 coupler
AC outlets quantity8 AC outlet(s)
Cable length2.6 m
Colour of productBlack
Dimensions (WxDxH)439 x 376 x 28.7 mm
Input connection typeNEMA L6-20P, IEC-320 C20
Input frequency50/60 Hz
MaterialMetal
Maximum current20 A
MountingHorizontal
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Operating altitude0 - 3000 m
Output connections8 x C13
Package dimensions (WxDxH)526 x 376 x 135 mm
PDU typesSwitched
Rack mountingYes
RoHS complianceYes
Source data-sheetIcecat.biz
Storage temperature (T-T)-15 - 50 °C
Weight4100 g
