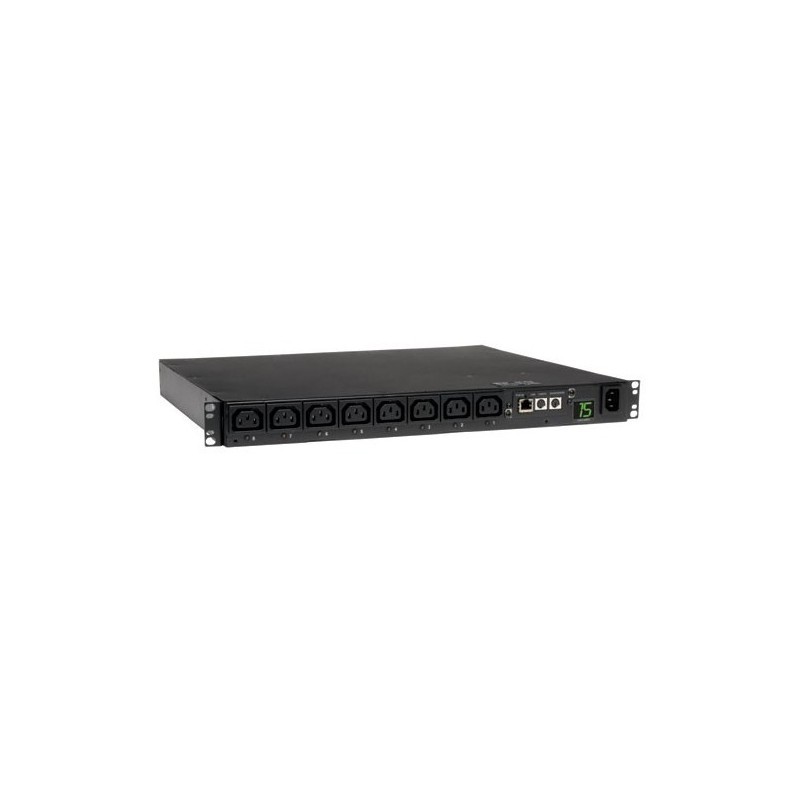

Tripp-Lite PDUMH15HVNET Switched PDU

10/12A 200-240V, 1U Horizontal Rackmount, 8 C13 outlets, C14 inlet with C14 power cable

More details

PDUMH15HVNET

In Stock

Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, ... Read More

Browse our range of high quality PDUs

New product

£555.50

£462.91 tax excl.

Free Next Day Delivery - on all orders over £100
  • More info

  • Details

  • Spec Sheet

Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

● 200/208/230/240V Switched Power Distribution Unit / PDU with built-in web/network interface (15A maximum; Agency de-rated to 12A 200/208/240V and 10A at 230V)

● C14 power inlet accepts a wide variety of worldwide input cord options

● Includes 2m C14 cable

● 1U horizontal rackmount form factor

● 8 switched C13 outlets

● Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis

● Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets

● Network interface provides PDU control and data regarding input voltage and output load levels

● Supports user-specified alarm notification thresholds

● In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors

● DHCP/Manual configuration support

● 10/100 Mbps auto-sensing

● Real-time clock backup maintains the time of day and date even if the PDU is unpowered

● Tiered access privileges allow an administrator and a guest to login via web browser

● Alert notifications via email or SNMP traps offer immediate event notification

● Firmware upgrade ability supports future product enhancements

● Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols

● Fully compatible with FREE PowerAlert Network Management System / NMS Software

● Included cord retention brackets keep vital network equipment plugged in and continuously powered

● Switched 10/12A 200-240V PDU; 1U horizontal rackmount

● Reports voltage, frequency & loading information via ethernet interface

● Visual current meter; reversible housing

● C14 inlet; 2m C14 power cable included

● 8 C13 switched outlets with cord retention brackets

● Temperature, humidity and contact-closure monitoring options



Package Includes



● 1U Switched PDU

● Mounting brackets

● Cord retention plates

● C13 to C14 power cable
AC outlet typesC13 coupler
AC outlets quantity8 AC outlet(s)
Cable length2 m
CertificationUL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950)
Colour of productBlack
Dimensions (WxDxH)439 x 376 x 28.7 mm
DisplayLCD
Input frequency50/60 Hz
LED indicatorsYes
MaterialMetal
Maximum current15 A
MountingHorizontal
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Operating altitude0 - 3000 m
PDU typesSwitched
Power plugC14 coupler
Rack mounting1u
RoHS complianceYes
Source data-sheetIcecat.biz
Storage temperature (T-T)-15 - 50 °C
Weight4100 g
EAN0037332139276
ManufacturerTripp-Lite
