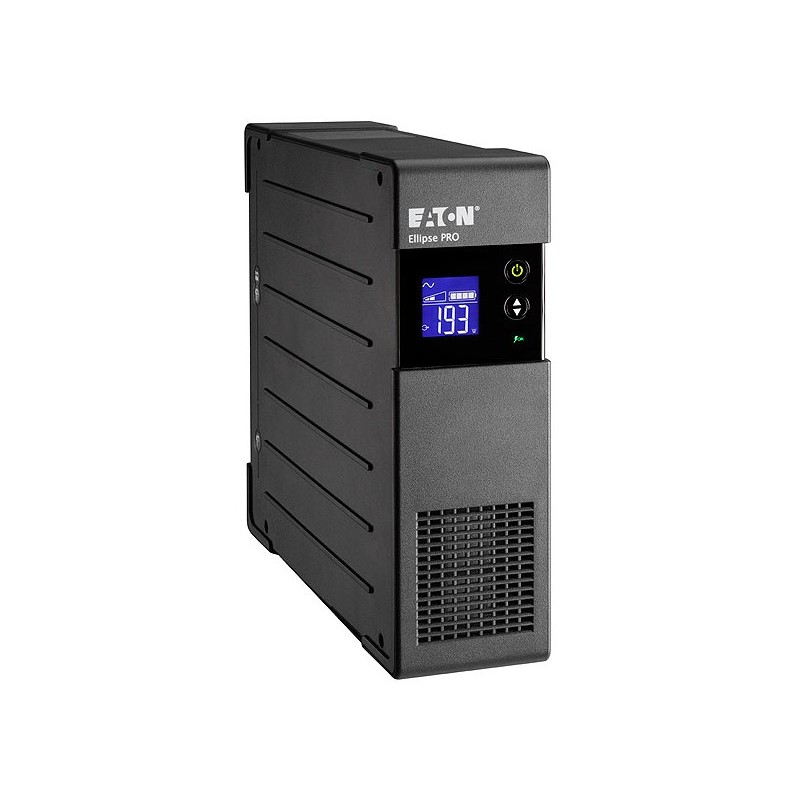

The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.

- LCD display for real-time status and measurements.

- Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).

- EcoControl function helps you save up to 20% energy compared to previous generation UPSs.

- Includes a high performance surge-protection device which complies with IEC 61643-1 standard.

- Up to 8 outlets to connect your PC & peripherals.

- Convenient extra-flat design for easy installation in any office environment.

- USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.

- Protects data connections such as Ethernet, internet and telephone lines.

AC outlet types	C13 coupler
AC outlets quantity	4 AC outlet(s)
Battery technology	Sealed Lead Acid (VRLA)
Colour of product	Black
Depth	285 mm
Display	LCD
Ethernet LAN (RJ-45) ports	1
Ethernet LAN (RJ-45) ports quantity	1
Form factor	Rackmount/Tower
Height	260 mm
Input operation voltage (max)	285 V
Input operation voltage (min)	165 V
LED indicators	Yes
Output operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output power	400 W
Output power capacity (VA)	650 VA
Power plug	C14 coupler
Power supply input frequency	50/60 Hz
Rack capacity	2U
Rack mounting	Yes
Safety	IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Source data-sheet	Icecat.biz
Surge protection features	Fax,Modem,Network,Telephone
Typical backup time at half load	9 min
USB 2.0 ports quantity	1
Weight	6600 g
Width	82 mm
